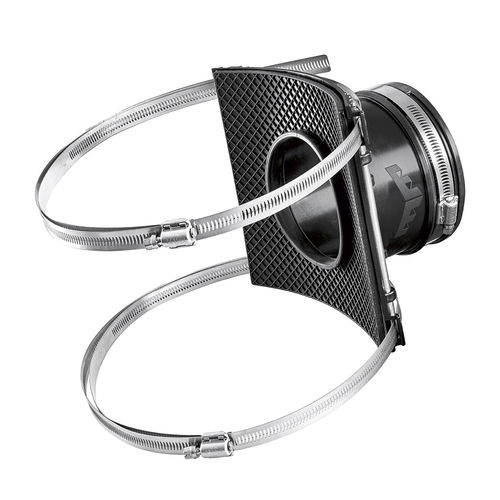

Branch saddle T-FLEX®

for tubesstainless steelEPDM

The T-SADDLE flexible elastomeric saddle is used to provide a quick and economical method of connecting laterals to existing sewers or drains. The T-SADDLE consists of an EPDM elastomeric sleeve and grade 1.4301 (304) stainless steel apron which provides a flexible connection to accommodate ground movement and minimise shear forces on the main pipe. Also the gridded rubber sleeve ensures a watertight seal with the existing main sewer or drain. The pipe clamps with sliding zip (DN 100 to 160) or with Hi-TORQUE fastening (DN 200) can be adjusted to suit the external diameter of the existing sewer or drain: one clamp covers several DNs. Four standard sizes are available for the T-SADDLE branching pipe: 100, 125, 160 and 200 mm for creating a junction on existing sewers or drains with external diameters measuring from 160 to 630 mm For existing sewers or drains of larger diameters, we can produce purpose-built clamps up to 2000 mm (ask us). T-SADDLE can withstand a maximum working pressure of 0.6 bar.
