Vortex flow limiter

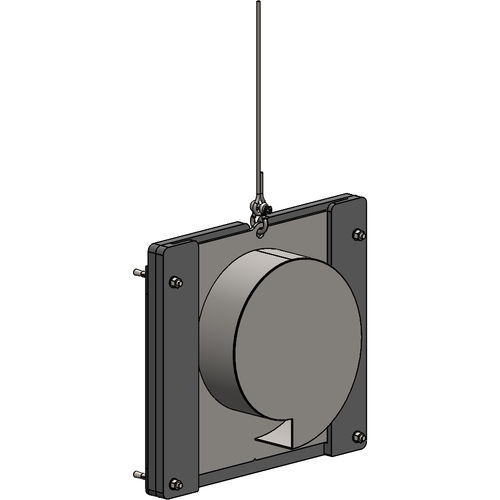

The VORTEX EFFECT FLOW LIMITER or VORTEX LIMITER is positioned at the outlet of the control structure, on the retention side. It limits the outflow according to the maximum head of water upstream. Its passage section is at least three times larger than a nozzle hole. The VORTEX EFFECT LIMITER therefore reduces the risk of clogging at the tank outlet. As the flow limiter has no moving mechanism, maintenance is minimal. The VORTEX LIMITER is available in two configurations: • A fixed version, installed directly on the concrete wall; • A removable version, mounted on slides, which can be removed from the surface using a sling. The VORTEX LIMITER requires an increase in an upstream load to operate. The formation of the vortex, that is to say the whirlpool, occurs when the limiter is fully submerged. Due to hydrostatic pressure, the water begins to swirl in the limiter chamber. The speed of the water, combined with the volute shape of the limiter, causes the effluent to flow around the periphery of the outlet tube. An air cone forms at the centre of the limiter. It is this air cone that enables the flow limitation while maintaining a large passage section: more than three times larger than a nozzle.
