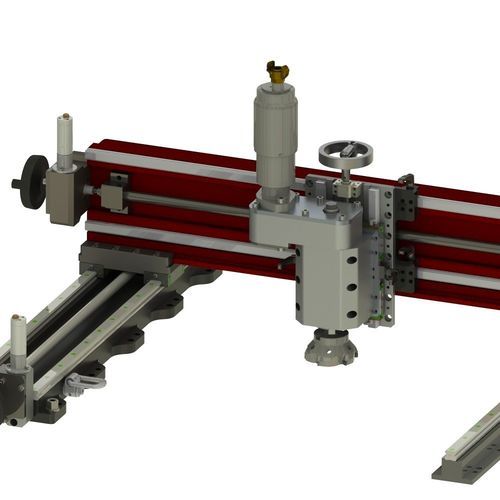

Portable milling machine PMH3

3-axisverticaluniversal

3-Axis/Gantry Portable Milling Machine PMH3The Normaco PMH3 Portable Milling Machine is a compact and durable solution for demanding on-site machining. Designed for precision and reliability, it performs efficiently in industrial environments such as refineries, shipyards, offshore platforms, and fabrication facilities.
The PMH3 can be used in a standard 3-axis setup or extended to a gantry configuration for larger and more complex milling operations. Its rigid and modular design ensures stability, repeatable accuracy, and fast setup in any working position.
The machine can be powered by pneumatic or electric motors, making it suitable for both conventional and cold-work environments where spark-free operation is required. Both the X and Y axes can be powered or manually operated, giving precise control over feed speed and cutting performance.
The spindle is available with a 3 kW air motor or an electric motor option, providing consistent torque and smooth cutting in a wide range of materials and conditions. Built for long service life and straightforward operation, the PMH3 delivers dependable performance wherever accurate on-site milling is needed.
Key Benefits

• Heavy-duty portable milling machine for precision on-site work
• Configurable as standard 3-axis or gantry-type system
• Pneumatic or electric drive options for full flexibility
• Suitable for cold-work and hazardous environments
• Powered or manual feed on both X and Y axes
• Spindle available with 3 kW air or electric motor
• Modular, rigid design for quick setup and stable operation
