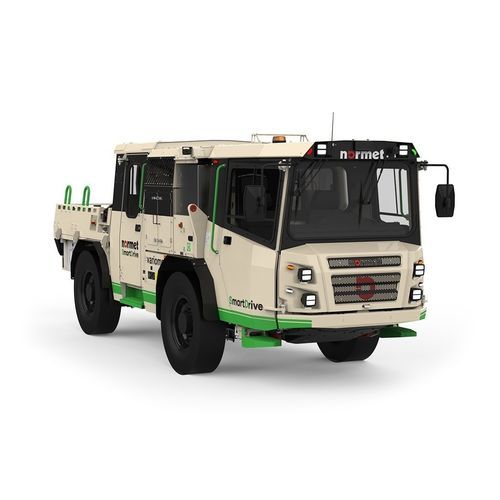

Underground mining vehicle VARIOMEC XS 035 CREW SD

for tunnelingelectric

Overview
Variomec XS 035 Crew SD is a compact battery-electric mine service vehicle engineered for light transport of personnel and materials in confined tunnels. It features a 3‑tonne load platform and a dedicated personnel compartment for three operators, plus seating for two to three in the front cabin. The vehicle integrates a FOPS/ROPS cabin, full chassis suspension and industrial-grade powertrain components to deliver reliable operation in small tunnel profiles.

Key message
The Variomec XS is our most compact combined carrier, designed to meet light transport needs with zero local emissions and reduced ventilation demand.

Key specification

• Type: Battery-electric combined personnel and material carrier
• Carrying capacity: 3 000 kg on material platform
• Personnel configuration: 3 (personnel compartment) + 2–3 (front cabin) — noted as 3+3
• Tramming height: 2.3 m

Features
Safety

• FOPS/ROPS approved cabin
• Maximized window area for improved visibility
• Cabin door interlock switches with safety brake application (standard); optional interlock for personnel compartment
• Suspended seats with 3-point belts in personnel compartment
• Mechanically suspended T-back driver seat with 3-point belt
• Optional reversing camera system
• SAHR fail-safe safety brakes and brake resistor for controlled decline driving
• No diesel exhaust or hot external surfaces

Ergonomics and operator environment

• New cabin layout optimized for safety, visibility and operator ergonomics
• Optional heating and air conditioning for both cabin and enclosed personnel compartment
• Full chassis suspension for improved ride in rough profiles
• Multifunctional display providing key driving information
• One-pedal driving mode for simplified operation

Sustainability

• Zero local emissions, eliminating diesel fumes underground
• Reduced ventilation requirements compared to diesel equivalents

Productivity and efficiency

• Modular use: same carrier suitable for multiple tasks
• Available in long-range and standard-range battery versions
• Daily checks accessible from ground level
• Longer service intervals vs diesel counterparts
• Industrial-grade Li‑Ion batteries for extended life
• Optional 9 kNm crane to increase handling capability
• Optional battery-powered AC outlet (230/400 VAC, 16 A)
• Optional welding unit (300 A), air compressor (200 l/min), hydraulic pressure washer (100 l tank)
• Optional communication system between cabin and personnel compartment

Technical characteristics / specifications

• Model: Variomec XS 035 Crew SD
• Type: Battery-electric combined personnel and material carrier
• Material platform capacity: 3 000 kg
• Personnel capacity: 3-person compartment + 2–3 seats in front cabin (3+3)
• Tramming height: 2.3 m
• Cabin: FOPS/ROPS approved
• Suspension: Full chassis suspension system
• Powertrain: High-quality components; industrial Li‑Ion batteries
• Braking: SAHR fail‑safe brakes; brake resistor for safe declines
• Operator aids: Multifunctional display, one-pedal driving, optional reversing camera
• Optional equipment: Crane (incl. 9 kNm), battery AC outlet 230/400 VAC 16 A, welding machine 300 A, air compressor 200 l/min, hydraulic-driven pressure washer (100 l), communication system
• Benefits: Zero local emissions, reduced ventilation needs, longer service intervals vs diesel equivalents
