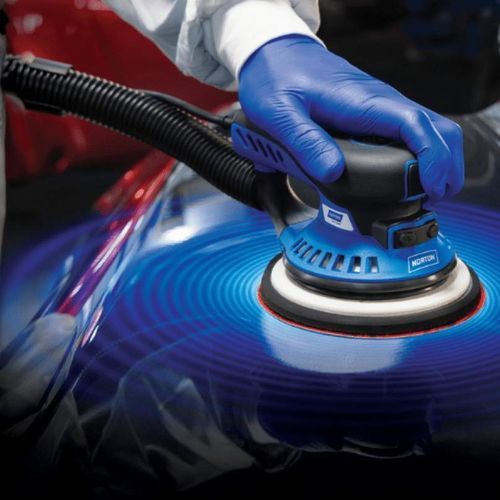

Random orbital sander DAS-e

orbitalhandheldelectric

Overview
The Norton DAS-e and OS-e electric sanders provide a compact, professional solution for high‑performance sanding and finishing in industrial applications. The range includes Dual Action (DAS-e) models for variable aggression and an Orbital (OS-e) model for larger area work.

Range & Models

• DAS-e Dual Action Sander – electric: 5.0 mm orbit (DAS-e 5.0mm)
• DAS-e Dual Action Sander – electric: 2.5 mm orbit (DAS-e 2.5mm)
• OS-e Orbital Sander: 70 x 198 mm platen (OS-e 70x198mm)

Key benefits & features

• Ergonomic design optimised for operator control and reduced fatigue during extended use.
• High power-to-size ratio: 350 W motor with speeds up to 10,000 RPM for efficient material removal and finishing.
• DAS-e available in 5.0 mm and 2.5 mm orbits to cover aggressive sanding and fine finishing tasks.
• OS-e platen 70 x 198 mm for fast orbital sanding of larger areas.
• Reactive braking system stops the back-up pad instantly to improve operator safety.
• Front-mounted power switch for convenient on/off control within easy reach.
• LED indicators show speed settings and operational status at a glance.
• Optimised dust extraction when used with Cyclonic discs and Cyclonic back-up pad for a cleaner workspace and extended abrasive life.
• Detachable power supply reduces in-hand weight and cable clutter for easier handling.

Cyclonic system and back-up pad
The Norton Cyclonic back-up pad uses a multi-hole Cyclonic pattern engineered to maximise dust extraction and sanding efficiency. The low-profile design improves control and precision, while the quick-change fixing system accelerates pad replacement and the high hole count simplifies disc alignment.

Why this system works

• Effective dust removal: the Cyclonic hole pattern aligns with DAS-e extraction ports to maintain a cleaner work envelope.
• Optimised cutting performance: Cyclonic abrasives combine ceramic grain and No-fil® technology with variable sander speed and low vibration for consistent cutting across filler, primer and topcoat.
• Operational efficiency: reduced clogging and fewer abrasive changes lower cycle times and decrease rework.

Resources
Brochures and product documents are available for the DAS-e range and the complete Norton electric sander system.

Specifications

• Motor power: 350 W
• Maximum speed: up to 10,000 RPM
• DAS-e orbit options: 5.0 mm and 2.5 mm
• OS-e platen size: 70 x 198 mm
• Reactive braking system: yes
• Front-mounted power switch: yes
• LED indicators: yes
• Dust extraction: optimised for Cyclonic multi-hole discs and Cyclonic back-up pad
• Back-up pad: Cyclonic hole pattern, low-profile design, quick-change fixing system
• Power supply: detachable (reduces weight and cable clutter)
