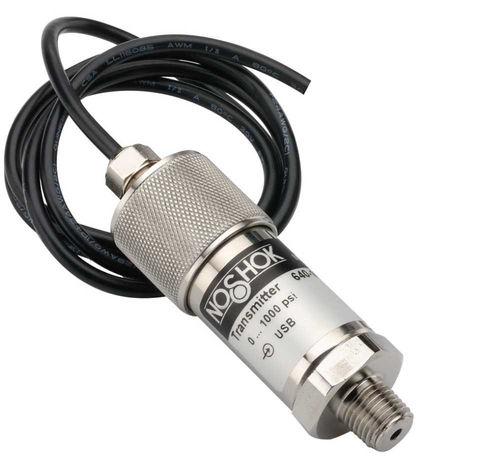

Absolute pressure transducer 640

vacuummembraneanalog

Vacuum ranges through 0 psig to 15,000 psig; absolute ranges from 0 psia to 15 psia through 0 psia to 300 psia Standard 4 mA to 20 mA output 316 and 17-4PH Stainless Steel wetted parts CE compliant to suppress RFI, EMI and ESD Ideal for applications including aerospace equipment, computer interface & data logging, laboratory & test equipment and precision measurement Output signals - 4 mA to 20 mA, 2-wire; 0 Vdc to 5 Vdc and 0 Vdc to 10 Vdc, 3-wire Pressure ranges - Vacuum through 0 psig to 15,000 psig Absolute from 0 to 15 psia through 0 psia to 300 psia Accuracy - ±0.05% full scale (BFSL); optional ±0.025% full scale (BFSL); (includes the effects of non-linearity, hysteresis, non-repeatability, zero point and full scale errors)
