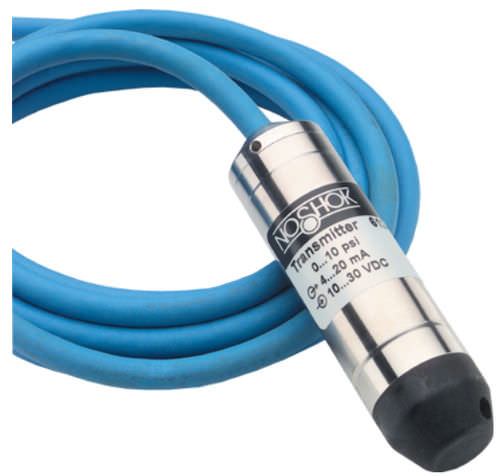

Hydrostatic level transmitter 612

for liquidsanalogfor storage tanks

Ranges from 0 inH2O to 50 inH2O through 0 psig to 1,000 psig Current and voltage outputs available 316 Stainless Steel, Polyamide and Polyurethane wetted parts CE compliant to suppress RFI, EMI and ESD Ideal for applications including irrigation, tank monitoring, water & wastewater and well head measurement Output signals - 4 mA to 20 mA, 2-wire; 0 Vdc to 5 Vdc and 0 Vdc to 10 Vdc, 3-wire; 0.5 Vdc to 2.5 Vdc, 3-wire Pressure ranges - 0 inH2O to 50 inH2O through 0 psig to 1,000 psig Accuracy - ± 0.25% full scale (BFSL); optional ± 0.125% full scale (BFSL); (includes the effects of non-linearity, hysteresis, non-repeatability, zero point and full scale errors) Stability - ≤ ± 0.2% full scale for 1 year, non-accumulating Response time - ≤ 1 ms (between 10% and 90% full scale) Service life - > 100,000,000 load cycles Temperature ranges - Compensated 32 °F to 122 °F/0 °C to 50 °C Effect ± 0.01%/ °F for zero and span Media 14 °F to 122 °F / -10 °C to 50 °C Storage -22 °F to 175 °F/-30 °C to 80 °C
