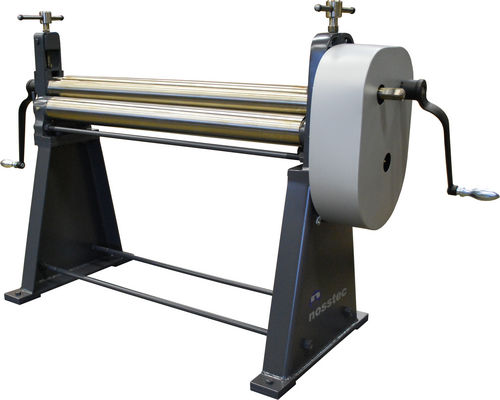

3-roller plate bending machine 8263 series

manual

Suitable for production of less demanding profiles, the 8263 is a manually operated machine made of cast iron. The lower rolls are fixed mounted while the upper roll is adjustable by means of two screw spindles. One side bracket can be bent outwards for the removal of finished piping. •Basic and robust •Cone bending optional •Crowned rolls •Heavy duty production Accessories Cone bending equipment Equipment for diagonal setting of upper roll. Hardened and ground rolls Used when working with hard materials like stainless steel. Induction-hardened to a depth of min 3mm, 57HRC hardness.
