Scanning inspection system WideXcanX-rayautomatic
Add to favorites
Compare this product
Characteristics
- Technology
- scanning, X-ray
- Operational mode
- automatic
Description

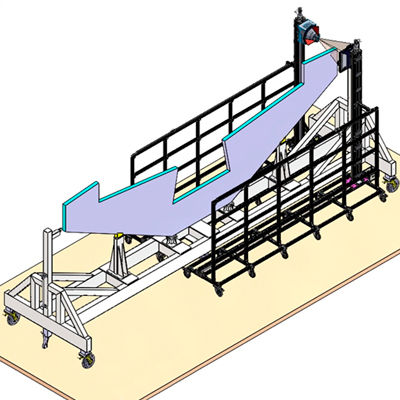

X-Y cartesian movement system for X-ray imaging of large samples or structures. WideXcan is a mobile system consisting of two frames that carry the RX tube and the detector. Its application is mainly oriented to the aeronautics sector, as it allows the radiography of large parts through the synchronised movement of the tube and the detector.
Main features
Design of all types of trajectories on the part
Automatic and manual spatial positioning
Pixel size: 100 μm
Pixel Matrix: 4200 x 3400
Greyscale: 16 bits
Scanning size: up to 4000 x 3000 mm (larger on request)
Maximum power: 180 kV
Maximum power: 90W (0.5 mA)
Focal spot: 20 μm min
