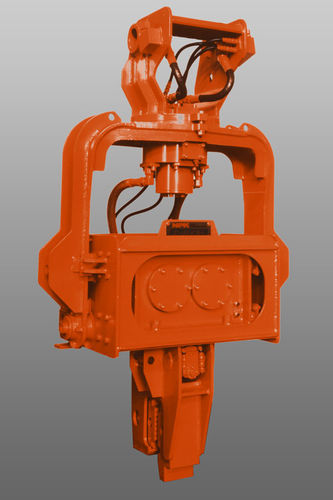

Hydraulic pile driver HP-4SX

sheet-pileexcavator mounted

180° free rotation allows precise alignment and positioning of the sheet pile. 90° rotatable chuck housing which gives excellent horizontal positioning to remove the sheet from the ground. An automatic hydraulic swivel lock prevents twisting of the sheeting, during driving or extracting operations. No external power source is required and the machine being simple to operate means that any excavator operator can easily drive and extract piles. Fitted with a hydraulic/mecha­nical cylinder lock for positive sheeting and pile-clamping – prevents slippage. Noise insulating and shock absorbing rubber mounts. Excavator weight (ton) - 10 – 15 Weight (kg) - 765 Frequency (n/min) - 3000 Working Pressure (MPa) - 23 - 25 Oil flow (l/min) - –120 Vibration force (kN) - 82 Length (mm) - 1780 Chuck Opening (mm) - 40 Chuck Oil flow (l/min) - 10 – 20 Chuck Pressure (MPa) - 24
