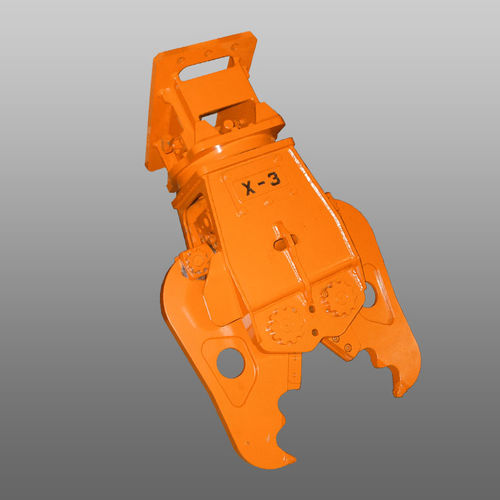

Jaw crusher X-3A

mobilecompact

Slim-line design Less weight by compact design Large jaw opening (354mm) Reliable and efficient Cylinder with integrated booster. New tooth design with carbide sprayed coating. Arm/Dipper stick mounted Piston rod and hoses fully protected inside the crushers frame. Fast opening/closing time 2.3 sec, in unloaded condition, produces 26 cycles per minute. X-3A has standard 360° mechanical rotation Maintenance friendly. Reinforced steel cutters are standard. Low oil flow, ensures other functions of the excavator are not influenced. No additional pressure reduction is required in the hydraulic system Excavator weight (t) - 2.5 – 4.0 Working pressure (MPa) - 21 Oil flow (l/min) - 30 – 60 Rotation pressure (MPa) - – Rotation oil flow (l/min) - – Max. force (A) (kN) - 320 Max. force (B) (kN) - 480 Max. force (C) (kN) - 920
