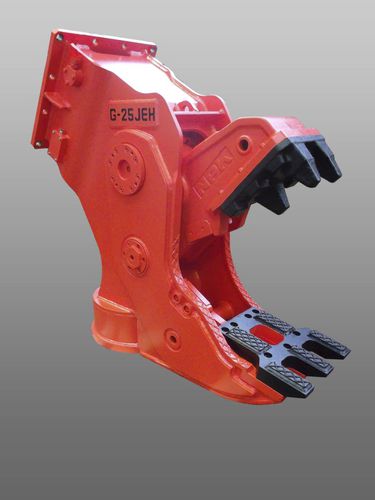

Hydraulic demolition shears G-25JEH

for excavatorsfor concrete

NPK® supplies their well known crunchers with integrated magnet to ease the sorting on site and to work more efficient. The electromagnet is operated by an additional ( hydraulic) powerpack. Equipped with NPK®’s exclusive booster system which provides maximum crunching force and fast cycle times. This booster system automatically activates whenever the jaws meet resistance. Compared to competitive crunchers without such a booster, the pressure intensifier system has a relatively low oil flow and produces faster cycle times and more crushing strength. ADVANTAGES Saving manpower and time on site. Powerfull electromagnet 2,4 – 3,4 kW. Easy maintenance. Large jaw opening. Piston rod fully protected against damage. Low oil flow – other functions of excavator are not influenced. The same cruncher parts for G and G-EH series High productivity and extreme power. Designed and produced by the world´s largest manufacturer of boom mounted attachments. Standard rebar cutters. Worldwide sales and product support network. Excavator weight (ton) - 19 – 28 Weight (kg) - 2650 Max. jaw opening (mm) - 823 Working pressure (MPa) - 26 Oil flow (l/min) - 100 – 250 Max. force (A) (kN) - 820 Max. force (B) (kN) - 1060 Voltage (V) - DC 220 Dimensions magnet (mm) - Ø 600×250 Power (kW) - 2.4
