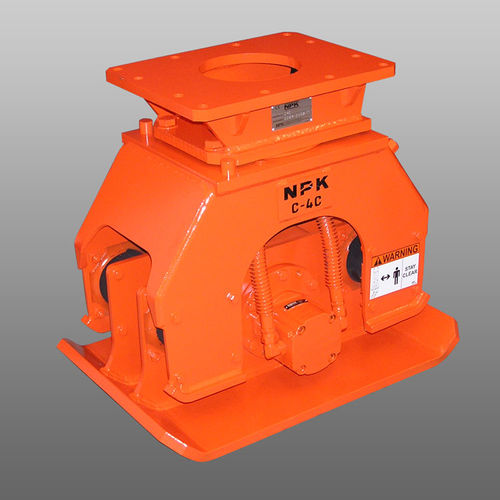

Forward travel vibratory plate C-4C

for excavatorsremote-controlled

Swivel top to minimize carrier repositioning. Hoses are routed out of the back of the compactor, safely away from the trench wall. Integrated flow control and pressure regulating valves protect the motor from excessive flow and pressure. Heavy-duty, direct drive gear motors. Durable rubber shock mounts to isolate vibration. Self-aligning, double row, spherical roller bearings with heavy duty steel roller cage. Internally routed hoses for maximum protection. Oil splash lubrication, eliminates routine greasing. Impuls force (kg) - 3600 Cycles per min (c/min) - 2100 Working pressure (MPa) - 11.7 – 15 Oil flow (l/min) - 68 – 83 Dimensions base plate (mm) - 580×860 Heigth (mm) - 762 Width (mm) - 584
