performance tester / bearing / portable / non-contact
77D11

Add to MyDirectIndustry favorites
Compare this product Don’t compare this product

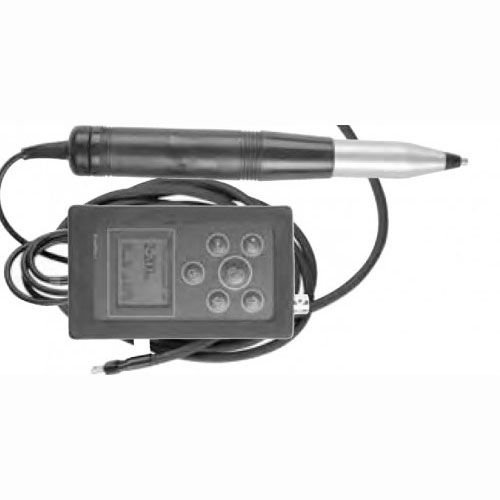

performance tester / bearing / portable / non-contact performance tester / bearing / portable / non-contact - 77D11
{{requestButtons}}

Characteristics

  • Test type:

    performance

  • Tested product:

    bearing

  • Other characteristics:

    portable, non-contact

Description

Ideally, rolling bearing elements are separated by a protective lubricant film, which impedes their collision. However, manufacturing defects, damages, which appear during operation, dirt in the bearing, insufficient or incorrect lubrication – all these factors cause the collision of the bearing elements and, as a result, acoustic oscillations of a wide spectrum are generated in the bearing body.

Standard Conditions for Operation:
- Operating temperature (device & sensor), -10 to 55°С, (±5)°С;
- Relative humidity 80% at temperature 30 °С;
- Atmospheric pressure, 84 to 106.7 KPa (630 - 800 mm Hg);
- Resonance frequency, 32 kHz;
- Measurement unit, dBi, dBc, dBm;
- Range, max. 99dB;
- Resolution, 1 dB;
- Accuracy, ± 5%;
- Operating temperature (tacho), 10 to 55°С, (±5)°С;
- Tachometer range, 50-30,000rpm;
- Tachometer resolution, 1rpm;
- Tachometer sensing distance, up to 1m;
- Memory capacity, 2MB;
- PC communication port, USB;
