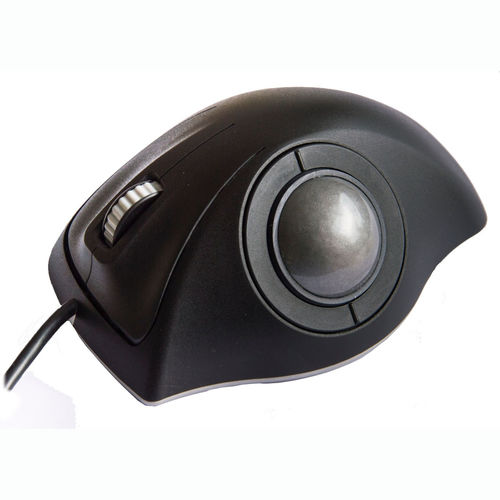

Laser trackball E38-76A31D
desktop38 mmUSB

laser trackball
laser trackball
laser trackball
Add to favorites
Compare this product


Characteristics

Technology
laser
Mounting
desktop
Ball diameter
38 mm
Other characteristics
USB, rugged, IP68
Applications
industrial

Description

- IP68 sealed trackball, fully waterproof - Laser optical navigation technology - Integrated IP68 hall-effect scroll wheel - Integrated left, middle and right switch functionality - 38 mm ball for precise cursor movement - Removable ball for easy cleaning - Output: USB - Smooth operation in rugged environments Trackball specifications Weight : ~500 grams Housing material : PC/ABS Housing colour/finish : Black/fine-textured finish Base plate material : Aluminium Base plate finish : Bead blasted & clear anodised Mounting position : All angles Ball size/material : Ø38.1mm (1.5")/Epoxy resin Tracking force : 20 grams nominal – damper ring seal 20-40 grams – PTFE seal Ball load 100N (10Kg) : maximum downward pressure for 2 minutes @ 20°C Resolvable ball speed : 30 IPS (inches per second) Tracking engine : Infra-red optical navigation technology Removable ring : PC/ABS, black Scroll wheel specifications Wheel diameter : Ø25mm Wheel material: PC/ABS Wheel colour : Grey Encoding technology : Hall effect Magnet strength : N42 Detent-scrolling force : 30 grams nominal Switch actuation force : 275 ± 125 grams force Left/right switch specifications Switch actuation force : 250 ± 100 grams force
