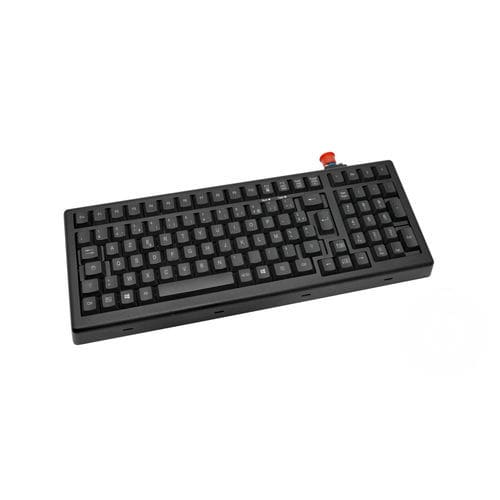

Panel-mount keyboard MKB104desktopmembrane104-key
Add to favorites
Compare this product
Characteristics
- Mounting
- panel-mount, desktop
- Key type
- membrane
- Number of keys
- 104-key
- Domain
- for the aerospace industry, marine
- Connection type
- USB
- Structure
- QWERTY
- Material
- aluminum
- Protection level
- corrosion-resistant, waterproof, MIL-STD-461G, IP65, MIL-STD-810G
- Other characteristics
- long-travel, backlit
Description
Overview
Standard available types
Design and key mechanism
Backlighting and interfaces
Construction and protection
Flexible custom design
Technical specifications
- MIL‑SPEC rugged keyboard designed for avionics and harsh environments
- Tested to MIL‑STD‑810G, MIL‑STD‑461G and DO‑160 standards
- IP65 sealed for protection against dust and water jets
- IEC 60945 certified for maritime applications
- Backlit, waterproof full‑travel switches with clear tactile feedback
- Machined aluminium enclosure, matt black with Surtec 650 coating
- High corrosion resistance and long service life
- High‑reliability key switch mechanisms
- Rugged Amphenol electrical connection system
- Available in panel‑mount and desktop versions
- Customization options available to meet specific installation requirements
- Manufactured under an ISO 9001 quality system
Standard available types
- MKB104S0001USB: desktop MIL standard keyboard
- MKB104N0001USB: panel mount MIL standard keyboard
Design and key mechanism
- High‑spec rubber dome key mechanism providing pronounced tactile feel
- Key lifetime: 10 million actuations
- Each key is black sprayed and laser‑etched to allow illumination in low‑light conditions
- Standard QWERTY layout supplied; number and position of keys can be specified for custom solutions
Backlighting and interfaces
- Backlight powered over USB (BUS‑powered) as standard
- Backlight can be externally controlled via customer's PWM signal in custom configurations
- NVIS‑compatible backlighting option available for cockpit compatibility
Construction and protection
- Machined aluminium construction provides impact strength, electrical shielding and environmental protection
- Waterproof and corrosion‑resistant design suitable for harsh operational environments
Flexible custom design
- Custom options include alternative backlight colors, NVIS backlighting, adding/removing keys, alternative mounting arrangements and integration of a pointing device
Technical specifications
- Product code: MKB104
- Standards: MIL‑STD‑810G, MIL‑STD‑461G, DO‑160, IEC 60945
- Protection: IP65 sealed
- Enclosure: Machined aluminium, matt black, Surtec 650 coating
- Switches: Full‑travel switches; high‑reliability rubber dome mechanism; 10 million actuations lifetime
- Key marking: Black sprayed and laser‑etched for illumination
- Backlight: BUS powered over USB (PWM control possible); NVIS compatible option
- Electrical connection: Rugged Amphenol connection system
- Versions: Panel mount and desktop
- Standard model variants: MKB104S0001USB (desktop), MKB104N0001USB (panel mount)
- Layout: QWERTY standard; customizable key number and positions
- Quality: Manufactured to ISO 9001 quality system
