3-axis joystick mouse CST100

switchwith buttonsfor CCTV applications

Product overview

• Dual-function unit: mouse pointer and 3-axis joystick
• Switch between modes using the pushbutton on top of the joystick
• Vandalproof construction with two anti-vandal stainless steel IP65-sealed switches
• Brushed stainless steel carrier plate for panel integration
• Designed for harsh industrial environments, navigation controls and CCTV/industrial camera operation
• Cursor speed adjustable (OEM only)
• No special drivers required; USB output with 1.6 m shielded cable (Type A)

Details
The CST100 combines pointer and 3-axis joystick functions in a single device. One mode operates as a conventional mouse pointer; the other provides precise 3-axis control. Mode switching is performed by pressing the pushbutton on the joystick head.

The enclosure and mounting plate are built for industrial use: brushed stainless steel carrier plate and anti-vandal sealed stainless steel switches offer increased resistance to tampering and environmental stress. The unit is suitable for control rooms, air traffic control consoles, surveillance stations and other demanding installations.

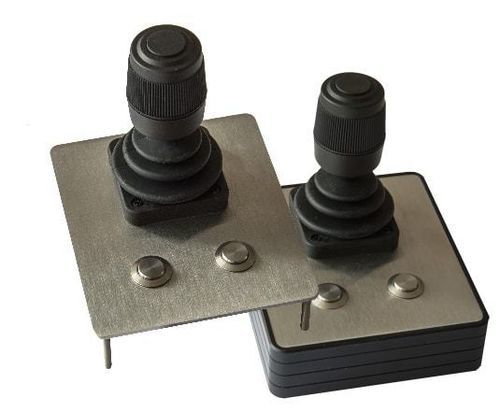

Model variants

• Panel mount joystick: type CST100F2
• Desktop joystick: type CST100S2

Technical specifications

• Product code: CST100
• Sealing: IP55 (switches: IP65 sealed)
• Carrier plate: brushed stainless steel
• Dimensions: 100 x 116 mm
• Weight: 0.5 kg
• Output: USB
• Cable: 1 shielded, straight, 1.6 m long (USB Type A)
• Operating temperature: -10°C to +60°C
• Storage temperature: -25°C to +70°C
• Typical applications: CCTV/industrial camera control, air traffic control, general industrial navigation controls
