Granules big bag unloading machine M506

mobileautomaticsemi-automatic

Overview

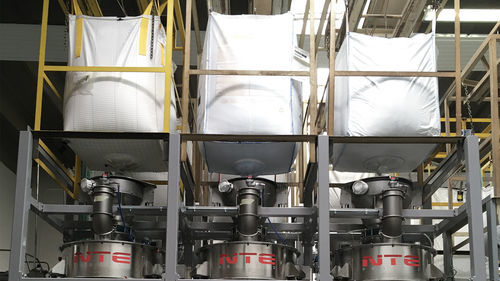

The NTE Process big bag unloading station M348 is a universal workstation for unloading spouted and non-spouted big bags. Integrated cartridge filters and a suction fan enable dust-free operation and protect operators. Reverse-jet filter cleaning recovers product from the filter and returns it to the storage/discharge hopper.

Versions and models

• M348: universal big bag unloading station for spouted and non-spouted bags.
• M358: modular expandable station for spouted big bags, equipped with a clamp valve to prevent direct operator–product contact.
• M505, M506-Combo, M506-automatic: solutions for manual or automated unloading of 25/40 kg bags; M506-Combo uses a top tensioning valve; M506-automatic includes belt, automated bag-breaker and screen.

Key features

• Integrated cartridge filters with reverse-jet cleaning for product recovery.
• Suction fan for dust control; option to connect to a centralised suction system.
• Clamp valve (on modular versions) to avoid direct contact before bag opening.
• Modular and expandable design for adaptation to process requirements.

Performance and automation

• M506-automatic: includes conveyor belt, automated bag breaker and screening; unloading capacity up to 400 bags/hour (depending on product and configuration).
• Manual and semi-automatic options suitable for frequent product changeovers and easy cleaning.

Installation, mobility and integration

• Versions with longer legs for installation of rotocells/rollers, mobile containers or pneumatic conveyors.
• Mobile versions on wheels available for flexible positioning.
• Can be fitted with a dedicated filter or connected to centralised extraction systems.

Materials, options and certifications

• Construction in AISI stainless steel or carbon steel, custom executions available.
• Optional ATEX versions for explosive atmospheres.
• Food-compliant executions (GMP & FDA) and high-containment pharmaceutical executions (OEB) available.

Applications

• Chemical, pharmaceutical and food industries and other processes requiring controlled, dust-free unloading of powders and granulates.

Technical specifications

• Primary model: M348.
• Related models: M358, M505, M506-Combo, M506-automatic.
• Small bag unloading (25/40 kg): manual or automated via M505/M506 series.
• M506-automatic capacity: up to 400 bags/hour (configuration dependent).
• Dust control: cartridge filters with reverse-jet cleaning and suction fan.
• Materials: AISI stainless steel or carbon steel.
• Available certifications: ATEX, GMP & FDA, OEB.
