Automatic filling machine bagfor viscous productsfor solids
Add to favorites
Compare this product
Characteristics
- Operational mode
- automatic
- Container type
- bag
- Product applications
- for viscous products, for solids
- Domain
- for the food industry, for the pharmaceutical industry, for the chemical industry
- Type
- vertical, screw
- Other characteristics
- PLC-controlled, compact, with conveyor, ATEX, with double hopper
- Throughput
Min.: 0 p/h
Max.: 0 p/h
- Capacity
Min.: 0.05 kg
(0.11 lb)Max.: 25 kg
(55.12 lb)
Description
Product

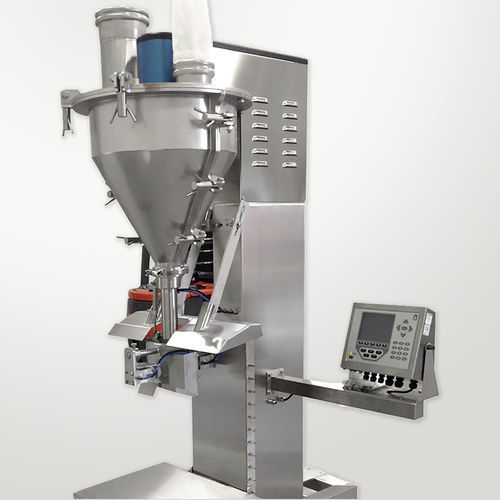

Vertical auger filler for dosing and packing bags from 50 g to 25 kg, available in automatic or semi-automatic mode depending on batch requirements. The Split Hopper design allows the machine to be opened completely for faster maintenance and cleaning. Dust-tight construction makes it suitable for fine and ultra-fine powders, microgranules and sticky or coarse materials.
Construction and design
The machine is equipped with a Split Hopper divided into two hinged parts to facilitate maintenance and cleaning. The dust-tight layout minimizes powder escape and cross-contamination. The design supports rapid product changeover and easy access for operators.
Main advantages
Materials handled (examples)
Suitable for spices, food additives, flours, milk powder, yeast, protein powder, pesticides, veterinary drugs, baking soda, washing powder, enzymes, feed additives, talc and similar powders or microgranules.
Options & integration
Can be integrated into existing or new packing lines. Available in ATEX version. Optional equipment includes a roller conveyor for hot sealing, stitching and labelling.
Characteristics / technical specifications
Vertical auger filler for dosing and packing bags from 50 g to 25 kg, available in automatic or semi-automatic mode depending on batch requirements. The Split Hopper design allows the machine to be opened completely for faster maintenance and cleaning. Dust-tight construction makes it suitable for fine and ultra-fine powders, microgranules and sticky or coarse materials.
Construction and design
The machine is equipped with a Split Hopper divided into two hinged parts to facilitate maintenance and cleaning. The dust-tight layout minimizes powder escape and cross-contamination. The design supports rapid product changeover and easy access for operators.
Main advantages
- High dosing precision with minimal deviations
- Gentle product handling
- Ideal for productions requiring fast product changeover
- Compact footprint for easy line integration
- Cost-effective operation
- User-friendly PLC-based control system with market-standard inverters
Materials handled (examples)
Suitable for spices, food additives, flours, milk powder, yeast, protein powder, pesticides, veterinary drugs, baking soda, washing powder, enzymes, feed additives, talc and similar powders or microgranules.
Options & integration
Can be integrated into existing or new packing lines. Available in ATEX version. Optional equipment includes a roller conveyor for hot sealing, stitching and labelling.
Characteristics / technical specifications
- Dosing range: 50 g – 25 kg
- Operation mode: automatic or semi-automatic (depending on batches)
- Hopper type: Split Hopper (two hinged parts) — machine opens completely for maintenance/cleaning
- Design: dust-tight
- Suitable product types: fine and ultra-fine powders, microgranules, sticky and coarse materials
- Control: PLC-based system with market-standard inverters
- Advantages: high dosing precision, gentle handling, fast changeover, compact and cost-effective
- Optional: ATEX version
- Optional equipment: roller conveyor for hot sealing, stitching and labelling
- Integration: designed for integration into packing lines
