Big-bag filling station with glove box M502

granulespowdersemi-automatic

Overview

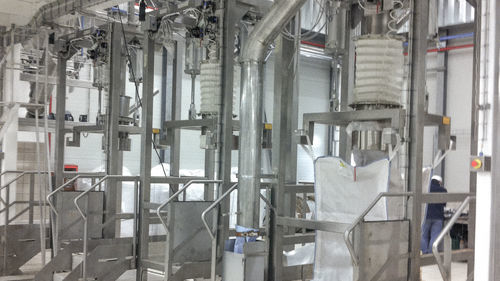

The NTE Process Big Bag Loader M502 is a semi-automatic big-bag filling station with an integrated weighing system, designed for accurate dosing and controlled discharge of powders and granules. Pneumatic cylinders manage product outfeed and enable bag settling to improve filling repeatability and accuracy.

Inflatable seal and operation
An inflatable seal clamps the bag spout to prevent leakage and dust escape. Automatic inflation facilitates quick, clean loading while maintaining operator safety and containment. The semi-automatic cycle is controlled via the integrated weighing unit for precise batch control.

Compatibility
The M502 can be integrated with Glove Box systems for handling carcinogenic, hazardous or OEB-certified materials. Food-grade and ATEX versions are available to meet specific industry requirements.

Customisation and optional equipment

• Customisation for different big bag formats and spout types
• Food-grade (FDA/EC) version available
• ATEX-certified versions for explosive atmospheres
• Optional roller conveyors for material handling
• Optional bag labelling systems
• Optional sealing systems with sewing kit
• Optional pallet dispensers
• Optional kit for loading barrels onto pallets

Technical specifications

• Integrated weighing system for precise dosing
• Semi-automatic work cycle
• Pneumatic cylinders for controlled product outfeed
• High weighing and filling accuracy with bag settling capability
• Inflatable seal to block bag spout and prevent leakage
• Automatic inflation for easier, cleaner loading
• Compatibility with Glove Box systems for hazardous/carcinogenic/OEB materials
• Available food-grade and ATEX versions
• Wide range of optional accessories: conveyors, labelling, sealing, pallet dispensers
• Optional kit for loading barrels onto pallets
