Pneumatic breaker RG

for installation

Overview

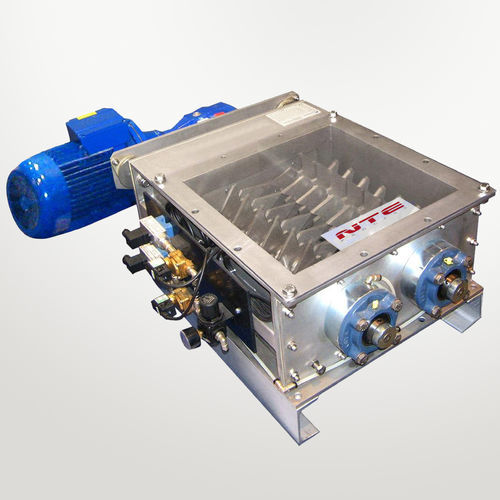

The RG lump breakers, available in single-shaft or double-shaft configurations, are engineered to break agglomerates of powders and granules directly on process lines. The machine features a robust carbon-steel or stainless-steel body housing one or two shaped lump-breaking shafts and a fixed grid. Agglomerates are retained by the grid while the shafts, with special blade geometry and spacing, reduce particle size for reliable material sizing and gritting. Units are offered in AISI 304 and AISI 316; CE certification is standard and an ATEX version for dust and gas zones is available. Single-shaft units are offered in compact sizes (from 200×200 mm) while double-shaft models provide higher throughput (up to 800×800 mm). Designed for straightforward installation and minimal maintenance, the RG series is suitable for continuous process integration.

Certifications

• CE
• ATEX (dust and gas zones) — optional

Advantages

• Integrated fluidizing system for improved flow
• Solid steel construction for industrial use
• Special interchangeable blade design for consistent sizing

Technical specifications

• Series: RG
• Configuration: single-shaft or double-shaft
• Function: breaking agglomerates of powders and granules; material size control and gritting
• Construction materials: carbon steel or stainless steel (AISI 304, AISI 316)
• Internal components: one or two lump-breaking shafts and a fixed grid
• Single-shaft nominal size: 200 × 200 mm (compact models)
• Double-shaft max nominal size: up to 800 × 800 mm (high-capacity models)
• Certifications: CE; ATEX version available for dust and gas zones
• Key features: integrated fluidizing system; special interchangeable blade design
• Maintenance: easy installation and limited maintenance for continuous operation
