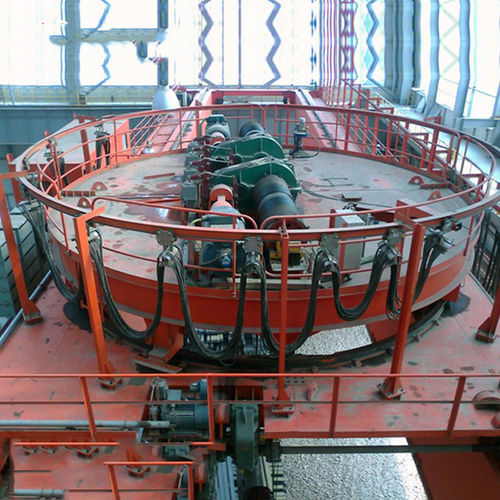

Double-girder overhead crane QC
with hoistlargefor workshops

double-girder overhead crane
double-girder overhead crane
double-girder overhead crane
double-girder overhead crane
Add to favorites
Compare this product


Characteristics

Type
double-girder
Other characteristics
with hoist, large, for workshops, heavy-duty
Lift capacity

Max.: 100 t (110 us ton)

Min.: 5 t (6 us ton)

20 t (22 us ton)

Lifting speed

Max.: 0.13 m/s (0.43 ft/s)

Min.: 0.01 m/s (0.03 ft/s)

0.13 m/s (0.43 ft/s)

Lifting height

Max.: 30 m (98'05")

Min.: 3 m (9'10")

15 m (49'02")

Description

overhead crane with magnet Model No.︰QC Brand Name︰NUCLEON Country of Origin︰China Unit Price︰- Minimum Order︰1 pc Product Description QD Double Beam Overhead Magnet Crane 1.Lifting material:cast ingot,steel scraps,steel ball,steel billets 2.Wide use in steel plants,melting plant,waste warehouse,billet processing workshop 3.High working efficiency,safe and reliable operation 4.Perfect performance,low maintenance This crane mainly consists of strong bridge beams,crane travelling mechanism,electric trolley and electric system and magnetic disk system,and could be classified into several working duties,e.g.A5,A6,A7,according to the working frequency and pure working time. Technical features of Magnet Crane Top assembly with best prices Strong box type,welding by machine hand Wheels,wirerope drum,gears,and couplings are processed by our CNC machine center,TOP quality control Heavy duty slipring motor,TOP quality in China Siemens brand main electric parts Pendent control,wireless,cabin control Safety features of magnet crane Weight overload protection device,top quality polyurethane buffer,crane travelling limit switch,low voltage protection function,emergency stop system,current overload protection function,phase protection function.
