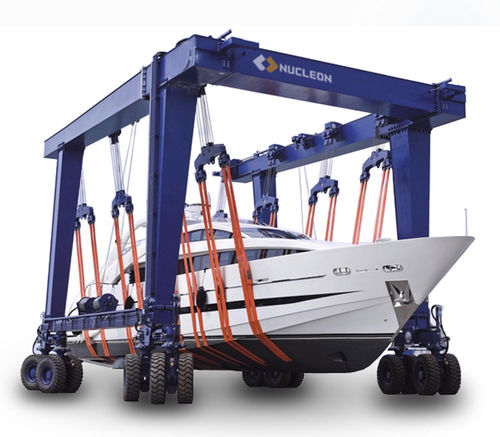

Rubber-tired gantry crane MBH
for marine applicationsdouble-girderhydraulic

rubber-tired gantry crane
rubber-tired gantry crane
rubber-tired gantry crane
Add to favorites
Compare this product


Characteristics

Mobility
rubber-tired
Applications
for marine applications
Other characteristics
double-girder, hydraulic, power-operated
Lift capacity

Max.: 800 t (882 us ton)

Min.: 32 t (35 us ton)

50 t (55 us ton)

Working height

Max.: 30 m (98'05")

Min.: 3 m (9'10")

15 m (49'02")

Description

MBH mobile boats handling machine is used for shipyard, yacht club, and water entertainment center, and navy,, main for boats of maintenance and maintenance water work, the equipment rated weight is 32~800t, full hydraulic drive, used flexible lifting belt to pull the boat bottom, more hanging points lifting at the same time, running and steering methord change diverse, General has straight line, oblique line, Ackerman steering, place rotary, disalignment steering,according to customer's different needs to select different configuration.
