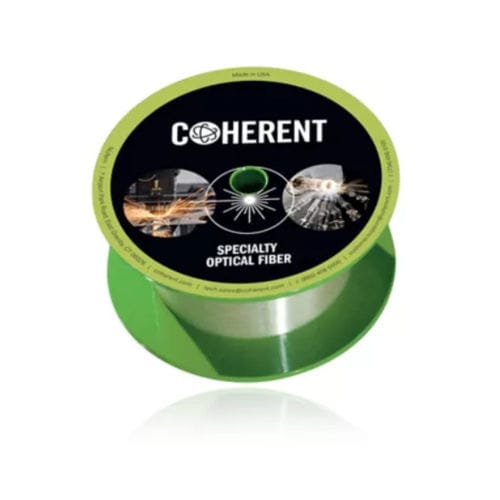

Silica fiber UHNA1

rodspoolcontinuous

Coherent Ultra-High NA fibers are part of the NuBRIDGE Fluoroacrylate fiber family and are excellent bridge fibers between high NA waveguides and low NA transmission fiber. Ultra-High NA fibers provide excellent coupling efficiencies to high NA waveguides. In addition, the composition of Ultra-High NA fibers are tailored to thermally expand the core during splicing thus achieving lower splice loss to transmission fiber. Applications Fluoride and other non-silica fibers Planar Waveguides Silicon photonics devices Fiber tails for high NA sources Bridge Fiber Features High numerical aperture - Bend insensitive fiber for miniature packages Thermally expandable core - Low splice loss to transmission fiber Small Mode Field Diameter - High coupling efficiency with Planar Waveguides RoHS compliant
