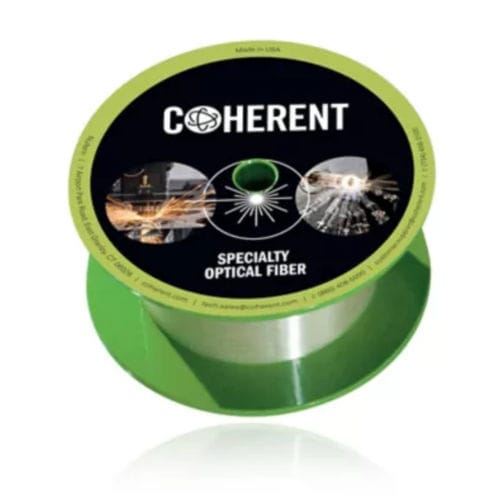

Silica fiber PLMA-GDF-25/250-UF

rodspoolcontinuous

NuUF fibers offer customers an opportunity to scale up power while avoiding the costs and risks associated with solid state designs. Our fibers provide a path to a seamless transition to a higher powered system with significantly reduced $/W. Optical Specifications Operating Wavelength - 1015 - 1115 nm Core NA - 0.07 ± 0.005 Cladding NA (5%) - ≥ 0.46 Cladding Attenuation - ≤ 15.0 dB/km @ 1095 nm Geometrical & Mechanical Specifications Cladding Diameter - 247.0 ± 5.0 µm Core Diameter - 25.0 ± 1.5 µm Coating Diameter - 380 ± 15.0 µm Core/Clad Offset - ≤ 2.00 µm Prooftest Level - ≥ 100 kpsi (0.7 GN/m²)
