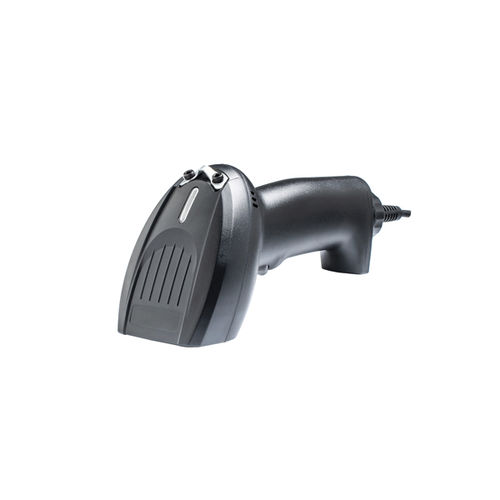

Handheld barcode scanner BD-9500HD
1D2Dfor warehouse

handheld barcode scanner
handheld barcode scanner
handheld barcode scanner
handheld barcode scanner
Add to favorites
Compare this product


Characteristics

Portability
handheld
Type
1D, 2D
Applications
for warehouse, for shop, for factory
Other characteristics
high-speed, high-resolution

Description

BD-9500HD delivers aggressive scan performance on linear barcodes and area imaging codes. It’s ergonomic design and available with multiple interface. BD-9500HD combines high resolution megapixel sensor for light industrial, retail, documents / billing process and banking / finance environment, health care, medical industry. It’s perfect to read 1D 3mil barcodes and 2D 5 mil barcodes. It is certificated by IP 54 and high performance to read on electronic display such as smart phone, tablet. General Interface: USB-KB / USB-COM / RS-232 Barcodes supported (1D): UPC-A, UPC-E, EAN-13, EAN-8, Code 128, GS1-128, Code-39, Code-32, Code-93, Pharmacode, Codabar/NW7, MSI, Interleaved 2 of 5, GS1 DataBar-14, GS1 DataBar Stacked, GS1 DataBar Limited, GS1 DataBar Expanded, GS1 DataBar Expanded Stacked, Composite Component A / B / C Barcodes supported (2D): PDF 417, Micro PDF 417, QR Code, Micro QR Code, Dara Matrix , Aztec, Maxi Code, Dot Code Optical Optical System: 1280 x 800 pixels Light Source: 610nm Red LED / White LED 6000- 6,500K Resolution: 3 mil (Code 39), 5 mil (QR Code) Depth of Field: 30mm - 300mm (EAN-13 3 mil) Scan rate: 60 fps PCS: 30% Electrical Voltage: DC 5V Scanning Currents: 380 mA Environment Operating temperature: 0℃ to 40℃ (32℉ to 104℉ ) Storage temperature: -40℃ to 70℃ (-40℉ to 158℉ ) Relative Humidity: 10% - 95% Shock Resistance: 1.8m drops Physical Weight: 140g (excluding cable) Dimensions: 161.73mm (L) x 65.5mm (W) x 84mm (H) Housing Material: ABS plastic Cable: Length: 180cm / USB Type: A or C, RS-232 Warranty: 1 year Certificate: CE / FCC / BSMI Sealing: IP 54

VIDEO

Catalogs

BD-9500HD
BD-9500HD
2 Pages
