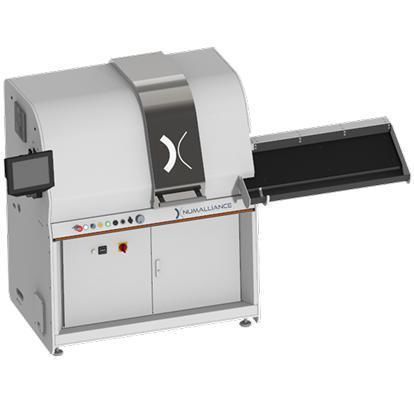

Wire straightening and cutting machine NUMACUT W SFC

fine wiresautomatic

Overview
The NUMACUT W SFC is a CNC coil-fed wire straightening and cutting machine for automated production of cut wire parts. Available in W05 and W08 variants, it processes wire diameters from Ø 1 to 8 mm (depending on model) and supports wire tensile strength up to 550 N/mm². The machine integrates a single-die rotary straightener, brushless drives and automatic wire introduction for continuous operation.

Main features

• Designed for fast changeover and quick tooling replacement
• Wire adjustment (straightening) during production
• Automatic wire introduction and feeding
• Suitable for soft wire — reduced-inertia rotors for instant stop-and-go during cutting
• Brushless motor drives
• Easy and fast programming via 12" touch screen
• Rotary straightener with single-die concept
• Low operational noise design
• Batch production control for traceability
• Can operate standalone or be integrated into a work cell

Man / Machine interface

• Touch & Form software
• Multilingual dialog and programming on 12" touch screen
• Optional additional I/O ports
• Internet connectivity for remote assistance and chat
• Industry 5.0 support
• Simulation program and debugging tools
• Program sequence review in slow motion

Model comparison table
NUMACUT W05 SFC | NUMACUT W08 SFC
Wire diameter range | Ø 1–5 mm | Ø 3–8 mm
Wire tensile strength | up to 550 N/mm² | up to 550 N/mm²
Shortest cutting length (with mechanical stop) | 80 mm | 80 mm
Shortest cutting length (without mechanical stop) | Wire Ø × 1.5 | Wire Ø × 1.5
Power | 25 kW | 25 kW
Machine dimensions (with ramp / without ramp) | 2600 × 1300 × 1750 mm / 1600 × 1300 × 1750 mm | 2600 × 1300 × 1750 mm / 1600 × 1300 × 1750 mm
Weight | approx. 2,000 kg | approx. 2,000 kg

Additional capabilities & notes

• Engineered for integration into workcells and special machine environments
• Quick tooling changeover reduces downtime
• Batch control enables production traceability and consistent output

Technical specifications

• Series / Model: NUMACUT W SFC
• Available sub-models: NUMACUT W05 SFC, NUMACUT W08 SFC
• Wire capacity (example): up to 550 N/mm²
• Wire diameter ranges: W05 = Ø 1–5 mm; W08 = Ø 3–8 mm
• Shortest cutting length (mechanical stop): 80 mm
• Shortest cutting length (without mechanical stop): Wire Ø × 1.5
• Power: 25 kW
• Machine dimensions: 2600 × 1300 × 1750 mm (with ramp) or 1600 × 1300 × 1750 mm (without ramp)
• Weight: approx. 2,000 kg
• Drive: brushless motors
• Straightening: rotary straightener with single-die concept
• Interface: 12" touch screen, multilingual, simulation and debugging tools
