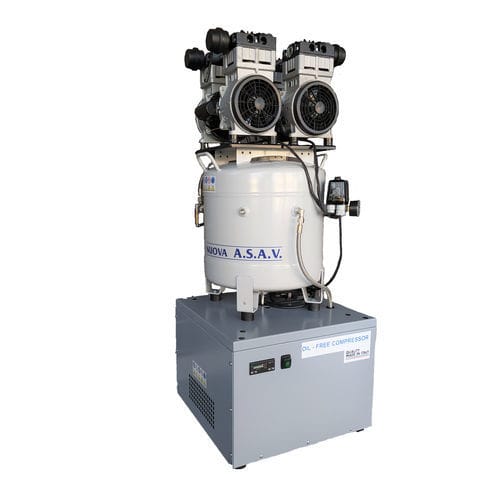

Piston compressor CSD50DRFairACfixed
Add to favorites
Compare this product
Characteristics
- Technology
- piston
- Type
- air
- Power source
- AC
- Portability
- fixed
- Lubrication
- dry
- Application domain
- for medical applications, for food applications
- Applications
- laboratory, for pharmaceutical applications
- Voltage
- 380 V
- Other characteristics
- compact, low-noise, tank-mounted, direct-drive, heavy-duty, electric, air-cooled, with dryer
- Tank volume
50 l
(13.2 gal)- Pressure
8 bar
(116.03 psi)- Flow
520 l/min
(137.37 us gal/min)- Power
3 kW
(4.08 hp)- Length
525 mm
(20.67 in)- Width
500 mm
(19.69 in)- Height
1,220 mm
(48.03 in)- Weight
78 kg
(172 lb)- Noise level
62 dB
Description
Description
High quality dry compressor for the production of medical compressed air,
driven by 2 twin-cylinder engines to supply large quantities of air.
50 Lt tank and max working pressure of 8 Bar.
It works at a maximum sound level of 62 dB.
The 2 column dryer guarantees the supply of perfectly dry air and a good duration of performance.
Appliance compliant with CE and ISO 8573-1 Class 0 certification
Suitable for 3 dental units
