- Three-phase alternator
- Nuova Saccardo Motori

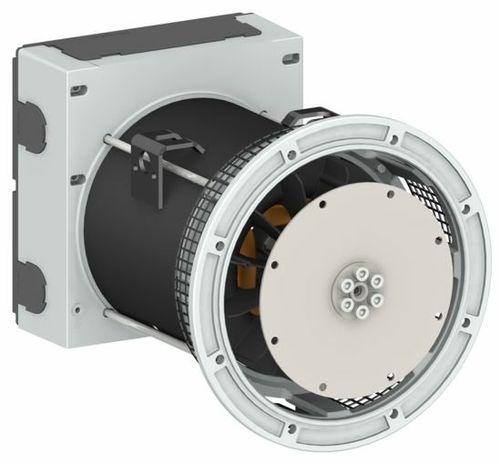

Three-phase alternator T 132 series4-poleindustrial
Add to favorites
Compare this product
Characteristics
- Phase
- three-phase
- Number of poles
- 4-pole
- Domain
- industrial
- Power in kVA
Min.: 8 kW
(10.88 hp)Max.: 35 kW
(47.59 hp)- Voltage
Min.: 127 V
Max.: 415 V
Description
Standard Voltage
50Hz: 230/400V, 240/415V
60Hz: 127/220V, 220/380V
Other voltages on request
Insulation class
H
Protection IP 23
(SAE IP 20, B34 optional IP 44)
T.H.D. ≤ 4%
Voltage accuracy
±5% (cosφ = 0,9)
High starting capacity
(Icc = 3÷4In)
Optional Electrical panel
