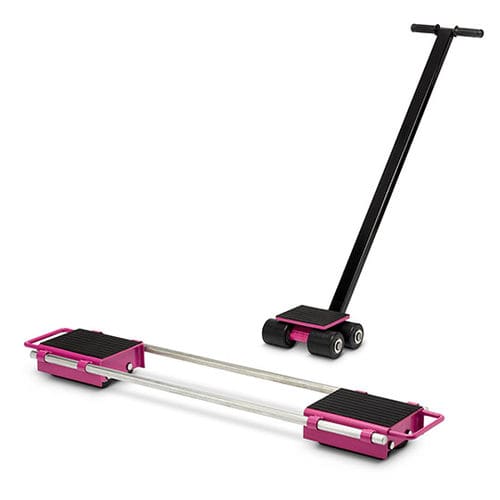

90° steerable dolly NTS A3/R6

for transportheavy-duty

For heavy loads up to 9 tons The NTS A3 and NTS R6 heavy-duty transport trolleys allow heavy loads to be transported safely within the company. Thanks to their compact and extremely sturdy design, they can easily and reliably handle loads of up to 9 tonnes. The combined use of these 2 transport trolleys makes it possible to "create" a three-pointed transport trolley with a steered drawbar and a pair of fixed rollers joined by a bar at the rear. This transport trolley has a manoeuvring angle of approximately 90°. In particular, the R6 trolley has 8 fixed rollers and offers an installation height of up to 110 mm. Another feature is the adjustable bar distance: from 500 mm up to 1250 mm. Technical description 90° Steerable Dollies A3 - Installation height / number of rollers: 110 mm/4 rollers - Support surface: 185x150 mm - External dimensions: 280x240x110 mm - Own weight: 13 kg - Roller dimensions: 85x90 mm Technical description 90° Steerable Dollies R6 - Installation height/ nr rollers: 110 mm/8 rollers - Supporting surface: 250 x 170 mm - External dimensions: 320x270x110 mm - Own weight: 30 kg - Rollers Dimensions: 85x90 mm - Adjustable bar distance mm: 500-1250 mm
