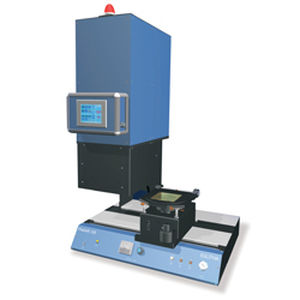

Laser photolithography system PhableR 100

The PhableR 100 system is based on the proprietary PHABLE (short for Photonics Enabler) photolithographic technology developed by Eulitha AG, which makes it possible to print high-resolution periodic structures in a non-contact, proximity photolithography system. The resolution obtained with the PhableR 100 is essentially the same as that of a DUV projection lithography system, but without the complex and expensive optics and mechanics. For example, linear gratings with a half-pitch of 150nm can be printed with high uniformity with the new system. As an added advantage, the practically unlimited depth of focus of the image formed by the PhableR 100 system means that the high-resolution patterns can be printed with high uniformity even onto non-flat substrates, which are commonly encountered in photonics applications. The PhableR 100 system can expose substrates with diameters up to 100mm using industry standard chrome-on-glass or phase-shifting masks. The mask and the substrate are loaded manually onto the system and the exposure process is controlled by an onboard computer. Standard i-line photoresists, both positive and negative tone, which are available from common vendors, can be used. Linear or curved gratings, 2D photonic-crystal type patterns with hexagonal or square symmetry can be printed with feature periods less than 300nm. The system may also be used like a standard mask-Aligner in either proximity or contact mode to print micron-scale structures.
