Rotary vane air motor NK series
Add to favorites
Compare this product
Characteristics
- Technology.
- rotary vane
- Torque
Max.: 1,450 Nm
(1,069.47 ft.lb)Min.: 22 Nm
(16.23 ft.lb)- Rotational speed
Max.: 1,850 rpm
(11,623.89 rad.min-1)Min.: 50 rpm
(314.16 rad.min-1)- Power
3,100 W
Description
Right rotation - Model - NK1900D
Right rotation - Code - 8711263
Speed rpm - No-load - 1850
Speed rpm - at Max Power - 1350
Torque Nm - at Max Power - 22
Torque Nm - Stall Torque - 53
Weight - Kg - 9,3
CHARACTERISTICS OF SHAPE
The normal delivery condition:

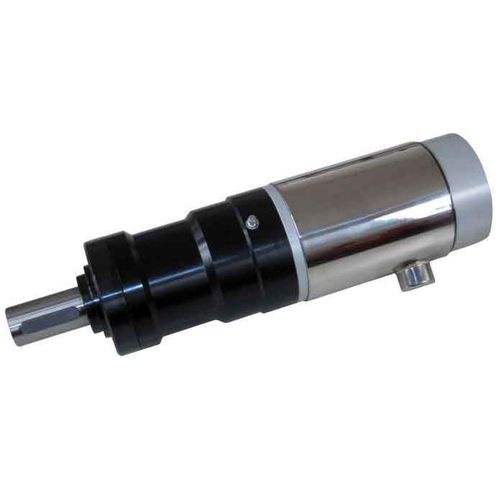

cylindrical shaft and body as shown in the photo.
Optional:
Shaft
- threaded - indication / AF (left rotation excluded - subject to checks for reversible)
- conical - indication /AC
- with collets - indication / AP
Catalogs
Pneumatic Motors Catalog
138 Pages
