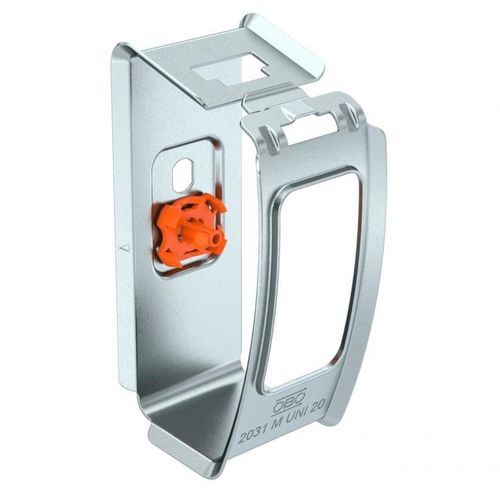

Clamp Type 2031 M UNI 20 FS

Description
Metal collecting clamp for laying and securing multiple NYM cables on walls or ceilings. Direct fastening via a plastic adapter or conventional screw mounting through a separate Ø 6 mm fastening hole. Universal adapter allows single-handed installation with various setting tools (gas-/battery-actuated or powder-actuated), compatible with brands such as Hilti, Würth, Spit and Bosch. High mechanical resistance also under fire conditions; halogen-free and non-combustible. Suitable for safe mounting above fire-protection ceilings and approved as a cable-specific variant for maintaining electrical function according to DIN 4102 part 12. The lock can be opened without tools. Detailed information on approved routing variants is available in the relevant test documentation.

Certifications and approvals

• EC declaration of conformity (CE)
• UKCA declaration of conformity
• Approved for use with gas-/battery-actuated setting tools
• Function maintenance class E30
• Function maintenance class E60
• Function maintenance class E90

Technical data

• Maintain electrical functions: yes
• No. of conductors NYM 3 x 1.5: 20
• Halogen-free: yes
• With anchor: no
• ROHS-conformant: yes
• Dimension: 20x NYM3x1,5
• Surface: Strip galvanised
• Material: Steel
• Colour: zinc
• Product series: UNI-Serie

Ordering information

• Type: 2031 M UNI 20 FS
• Item no.: 2207214
• EAN: 4012197490034
• No. of conductors (NYM 3 x 1.5): 20
• Smallest selling unit: 50 piece
