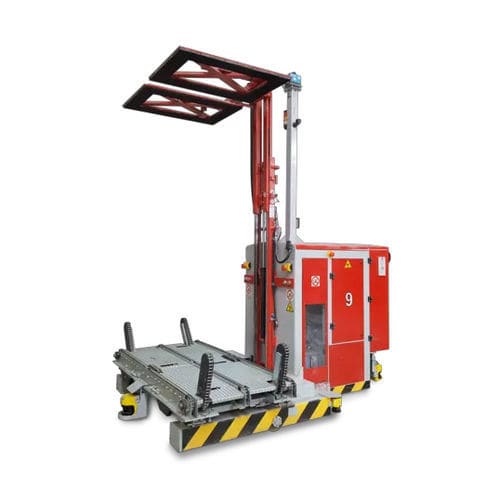

Belt conveyor AURIGA C series
palletcanhandling

belt conveyor
belt conveyor
belt conveyor
Add to favorites
Compare this product


Characteristics

Technology
belt
Transported product
pallet, can
Other characteristics
handling, flexible
Maximum load

Min.: 1,500 kg (3,306.934 lb)

Max.: 5,000 kg (11,023.113 lb)

Speed

1,700 mm/s

Description

Our conveyor LGV move from a production line to another, in total safety. For some processes you need to move your products from a specific conveyor line to another. With this highly flexible solution you can handle from one to four conveyors simultaneaously.. Auriga C are vehicles equipped with chains, rollers or rubber belt conveyors. Our conveyor vehicles are designed to move the product from one conveyor to another. The Auriga C range goes from Auriga C1, which transports one single pallet, up to the larger Auriga C4, which transports 4 pallets simultaneously. ADVANTAGES High stability of the product being moved Maximum safety when approaching the stations Possibility of handling pallets, half pallets and quarters of a pallet AC motors on conveyors Technical data The load capacity of Auriga C goes from a minimum of 1500 kg for Auriga C1 to a maximum of 5000 kg for Auriga C4. The conveyors used for material handling can be customized to transport different pallets. Maximum speed is 1700 mm/second.
