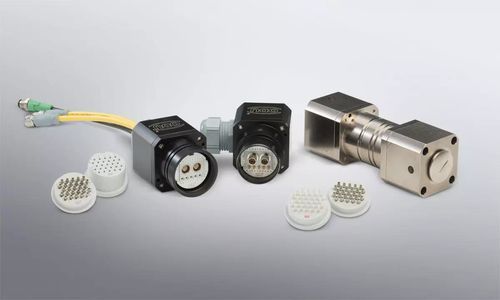

Modular connector ODU DOCK Silver-Linecombinedpneumaticdata
Add to favorites
Compare this product
Characteristics
- Type
- data, electrical power supply, combined, pneumatic, optical
- Shape
- straight, right-angle
- Connection type
- crimp
- Electrical characteristics
- multipole, high-density
- Material
- plastic, aluminum
- Domain
- for industrial use, for robotics
- Other characteristics
- modular, EMC-shielded, for numerous mating cycles
Description
Overview
Whether for industrial robots, test equipment, or industrial tool-changing systems: ODU DOCK Silver-Line was specifically designed for automatic docking. Thanks to its unique springwire technology, this connector offers a solution designed to withstand at least 100,000 mating cycles—and with the quick-change head, up to 10 million. These robust and contact-safe industrial connectors can be equipped with different contact inserts depending on the application.
Key Features
Whether for industrial robots, test equipment, or industrial tool-changing systems: ODU DOCK Silver-Line was specifically designed for automatic docking. Thanks to its unique springwire technology, this connector offers a solution designed to withstand at least 100,000 mating cycles—and with the quick-change head, up to 10 million. These robust and contact-safe industrial connectors can be equipped with different contact inserts depending on the application.
- Easy handling and usability
- 2+PE to 36+PE inserts for transmission of signal, power, current, data, and media
- Optionally available with EMC protection
- Straight and angled cable outlets
- High contact density thanks to the extremely small contact diameter
- Standard contacts with crimp termination; solder termination on request
Key Features
- automatic docking
- For industrial applications or robots
- 100,000 to 10 million mating cycles
- Optionally available with cable assembly
