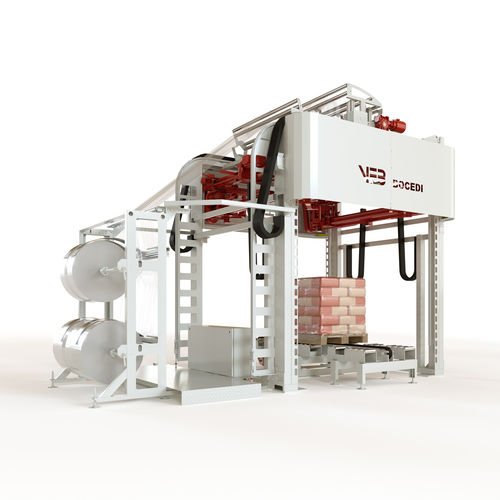

Automatic hood machine FB3000 series

stretch filmfor building materialsfor pallet

The FB3000 stretch hooder is designed to offer flexible packaging standards. With the integrated cartesian system to stretch the film, the hooder can operate with a large variety of different load shapes and sizes.  The FB3000 has the innovative patented head lowering system that allows to perform all maintenance services and operations at floor level. You can easily choose to lower the cutting edge and the sealing bar OR the film change station separately to allow the operator to perform all the necessary action within maximum safety. With a latest up to date film opening device the hooder can work with any stretch film type or thickness from 20 to 200 micron, printed or not.  The FB3000 output capacity can reach the 80 loads per hour. Thanks to the integrated load dimension reader the machine will automatically tailor each hood for each load. Easy to operate and with little maintenance requirement the FB3000 is designed with pneumatic movements to keep the machine as simple as possible. With the many hood finishing achievable with the stretch hooder, do not just pack the load, pack it the way you want it. Technical data: • Capacity: 80 pallet/hr • Minimum pallet size: 600×600 mm • Maximum pallet size: 2600×1400 mm Max pallet size per machine model (LxW): • FB3000 Small: 950x800mm • FB3000 Standard: 1350x1150mm • FB3000 XL: 1800x1400mm • FB3000 XXL: 2600x1400mm
