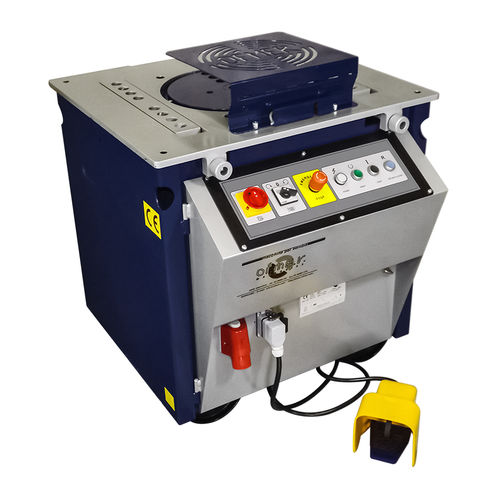

Electric bending machine P38 Evo

concrete reinforcementhorizontal

The desire to differentiate ourselves in an increasingly demanding and competitive market, led OF.ME.R. to project and launch the line Evo: a new series of bending machines for concrete reinforcing steel rods, the result of the latest building technologies applied to the experience achieved over the years. The reduction gearbox is a monobloc in spheroidal cast iron, with the same resistance of iron, does not have any welding and this gives the product considerable strength and sealing. These models are standardly produced with a wide turning plate, that permits to obtain larger curving radii compared to the Standard version, and with long saddles, that allow to perform the “double bending”. Formidable machines, with high-performance and easy to maintain, on which the manufacturer believes strongly and grants 2 year warranty on all mechanical components. A checking block, indispensable to correctly direct the rod on the working top and loosen the effort exerted on the bar in the previous point to the bending point, thus avoiding possible deformations of the rod. Can be used with bars up to Ø 20mm; A square pin, to be used with the checking block, to counteract and annul the effort exercised by the bending on the checking block; A stirrup bending pin in special cemented and hardened steel, to be positioned on the turning plate for the production of stirrups, as it permits to obtain small curving radii. Can be used with bars up to Ø12mm; Three bush holding pins in special hardened and cemented steel, to be positioned on the working top together with bushes, with the function to support the effort coming from the phase of bending;
