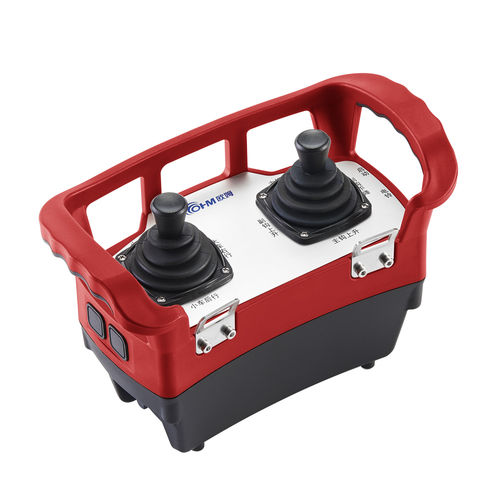

Rugged radio transmitter C18

datacontrolIP65

Rugged, durable, dust-proof and water-repellent accord with ergonomic design; Dual CPU encoding and decoding to ensure reliable data communication; Well-designed joystick, life span of 1 million times; Smart key, perfect backup work ability; Real-time active control, in line with EU standards; Up to 64 groups of IO input, 10 groups of proportional input; Automatic frequency control, automatically select the appropriate channel when starting up; Optional bus output type, customized feedback. Radio: Frequency range: 400-470MHz Transmission rate: 9600bit/s Transmitting power: ≤10mW (customizable) Frequency tolerance: 50dB Modulation mode: GFSK (Gaussian Frequency Shift Keying) Channel interval: 25KHz Receiving sensitivity: -115dBm Check mode: CRC-1TM Physical Data: Transmitter weight: 1.4kg (without battery) Transmitter dimensions: 254mm x 130mm x 168mm (length x width x height) Transmitter shell material: High-strength engineering plastics Receiver weight: 2kg Receiver dimensions: 298mm x 206mm x 103mm (length x width x height) Receiver installation size: 186mm x 88mm Receiver installation aperture: Φ6mm Receiver shell material: High-strength engineering plastics Working temperature range: -25℃-70℃ Working humidity range: 0-97%RH Safety Standard: EN ISO 945-1 Category3 EN ISO 13849 Class D Model Approval Certificate for Radio Transmission Equipment (National No Committee) Safety certificate of crane remote control device (Liao'an Institute) Executive Device: Real-time: Dual CPU real-time control Frequency control: PLL phase-locked loop Special address code: 32bit>4.2 billion
