Storage warehouse shelving
with shelvesshuttleadjustable

Storage warehouse shelving - OHRA Regalanlagen - with shelves / shuttle / adjustable
Storage warehouse shelving - OHRA Regalanlagen - with shelves / shuttle / adjustable
Storage warehouse shelving - OHRA Regalanlagen - with shelves / shuttle / adjustable - image - 2
Storage warehouse shelving - OHRA Regalanlagen - with shelves / shuttle / adjustable - image - 3
Storage warehouse shelving - OHRA Regalanlagen - with shelves / shuttle / adjustable - image - 4
Add to favorites
Compare this product

Characteristics

Application domain
storage warehouse
Type
with shelves
Inventory management
shuttle
Configuration
adjustable, modular, double-sided, single-sided
Capacity
for heavy loads
Material
galvanised steel
Other characteristics
galvanized, manual, boltless
Capacity

Min.: 500 kg
(1,102.3 lb)

Max.: 2,500 kg
(5,511.6 lb)

Height

2,000 mm, 2,500 mm, 3,000 mm
(78.74 in, 98.43 in, 118.11 in)

Width

1,500 mm, 2,000 mm, 2,500 mm
(59.06 in, 78.74 in, 98.43 in)

Depth

500 mm, 600 mm, 800 mm
(19.69 in, 23.62 in, 31.5 in)

Description

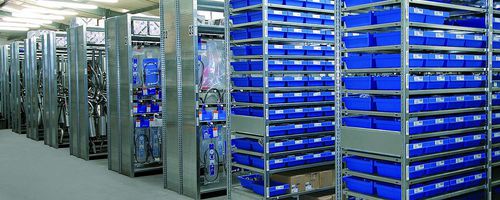

OHRA shelving racks are ideal for storing small parts and non-palletised goods. These galvanized boltless racks are assembled without screw connections and are primarily designed for manual removal of goods. The sturdy shelves have different shelf widths and load capacities and feature several protection edges. The flexibly configurable shelving racks are available in heights of 2,000, 2,500 and 3,000mm, while the shelf depth is optionally 400, 500 or 600mm. The individual shelves can be supplied with load capacities of 150, 250 and 330kg, and the maximum bay load is 1,500kg. These racks are tested in accordance with BGR guidelines and allow the shelves to be adjusted in height in 25mm increments. They are also available as double-sided racks.
