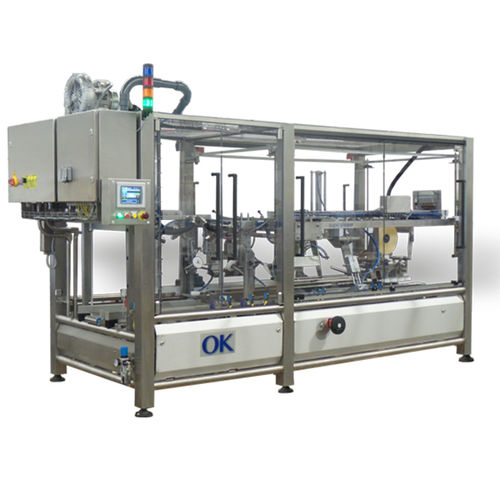

Supercloser SC410 Polybag-in-box Decuffer Folder & Top Taper
The Supercloser SC410 mechanically un-cuffs a bag in a box clear of the case flaps, opens the side flaps, folds the bag into a neat two-way fold to protect the filled product, closes the flaps and tapes the top of the cases.
Stainless steel finish.
Heavy duty conveyor system. Touch screen display.
Fully interlocking guarding.
Clean and durable, maintains hygiene.
Highest speed at low maintenance.
Separates cases for automatic operation.
Operator safety and OSHA compliance.
Case range: -
10.00" x 8.00" x 6.00" (L x W x H) min.
20.00" x 16.00" x 20.00" (L x W x H) max.
250mm x 200mm x 150mm" (L x W x H) min.
500mm x 400mm x 500mm (L x W x H) max.
Speed: - Up to 12 cases per min
Bag materials: - All standard polyethylene films (HDPE, LDPE, LLDPE,
Tape Applicator: - OK-55 high quality taping head with open tape feed path,
suitable for all standard 2“ (50mm) wide pressure sensitive tapes up
to 14” roll diameter.
Bag Materials: - All standard polyethylene films (HDPE, LDPE, LLDPE,
Bag Gauges: - 1.0 - 4.0 mil (25-100 micron) depending on material.
Pneumatic: - 80-100 psi (6-8 bar), 1/2” supply.
Machine Handling: - Right to left or left to right to requirement.
