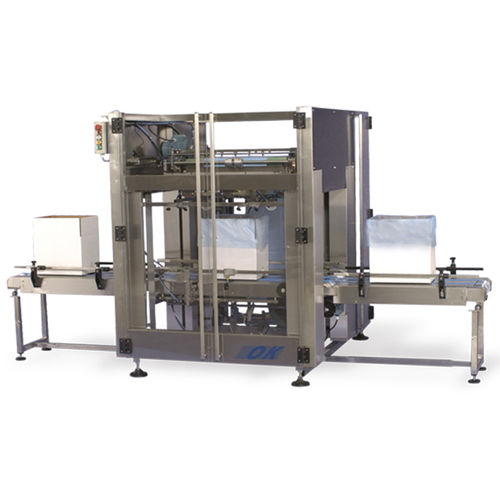

Automatic insertion machine Superliner SL220

for bags

Superliner SL220 Polybag Maker & Bag Inserter The SL220 case liner makes bags from a roll of gusseted polyethylene tubing, places the bag into a case, crate, drum or tray and cuffs the bag over the edges. The Superliner SL220 Servo case liner sets a new industry standard with a speed of up to 25 cases per minute. FEATURES: - Stainless steel finish.Bags made on the machine.Adjustable bag length.Dual roll holder.Wide case and film range. BENEFITS: Clean and durable, maintainshygiene.Cost savings over pre-made bags.Reduce inventory, one roll sizemakes multiple bag lengths.Easy roll change with minimaldown time.Protects investment with flexibility for future market requirements. TECHNICAL SPECIFICATIONS: Case range: - Superliner SL220: - 10.00” x 8.00” x 6.00” (L x W x H)min. 250mm x 200mm x 100mm 25.00” x 18.00” x 20.00” (L x W x H)max. 650mm x 450mm x 500mm Superliner SL222: - 14.00” x 12.00” x 8.00” (L x W X H)min. 350mm x 300mm x 200mm 31.00” x 24.00” x 24.00” (L x W x H)max. 780mm x 600mm x 600mm Speed per minute: - Superliner SL220: - Up to 18 cases per minute. Superliner SL220 SERVO: - Up to 25 cases per minute. Superliner SL222 - Up to 15 cases per minute. Bag materials: - All standard polyethylene films (HDPE, LDPE, LLDPE, co-extrusions.). Bag gauges: - 0.7-3.0 mil (15 - 75 micron) depending on material. Electric: - 480V, 3 Phase, 60Hz standard, or to requirement. 400V, 3 Phase, 50Hz standard, or to requirement. Pneumatic: - 80-100 psi, 1/2” supply. 6 - 8 bar. Machine handling: - Right to left or left to right. Finish: - Stainless steel, zinc plated.
