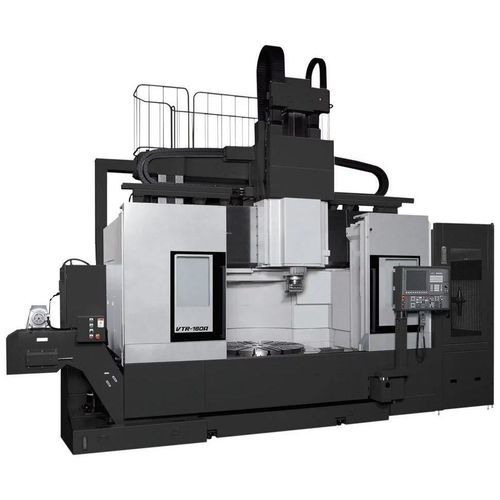

CNC milling-turning center VTR-160A

verticaldouble-columnhigh-precision

Overview
The Okuma VTR-160A is a double-column vertical turn-mill center engineered for heavy turning and milling of large cylindrical and heavy workpieces. It delivers high rigidity, dimensional precision and thermal stability suitable for production environments.

Key features

• Double-column (portal) structure for superior rigidity and accuracy
• Thermo-Friendly Concept for thermal compensation and stable precision
• Integrated milling capability within a multitasking (turn‑mill) platform
• Capable of heavy cutting while maintaining thermal stability
• Options for head change and pallet systems to enable automation

Applications

• Multitasking machining combining turning and milling on large, robust workpieces
• Heavy cutting and high-precision component production in series or batch environments

Specifications

• Category: Multitasking machine, Lathe / Turn‑mill center
• Series: VTR-A
• Max. turning diameter: 1,600 mm
• Max. turning length: 1,250 mm (option: 1,600 mm)
• Spindle speed: 400 min-1
• Number of tools: 23 (options: 35, 59)
• Motor power: 45/37 kW (option: 75/60 kW)
• Note: values in brackets indicate optional/alternative configurations
