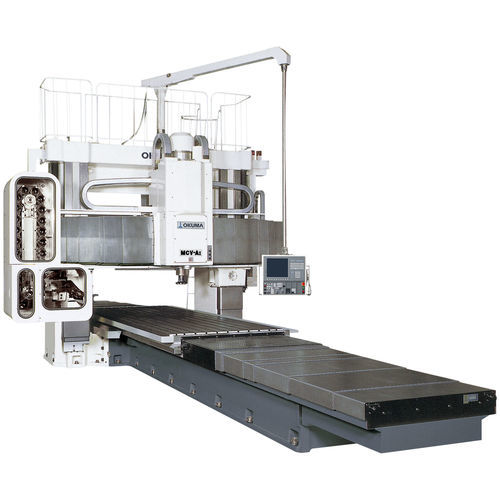

Double-column machining center MCV-AII3-axisvertical24 tools
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Structure
- double-column
- Number of tool stations
- 24 tools, 50 tools
- Associated functions
- cutting
- Applications
- heavy-duty, for large workpieces
- Other characteristics
- high-precision, rigid
- X travel
2,000 mm, 5,000 mm
(78.74 in, 196.85 in)- Y travel
1,600 mm, 2,000 mm
(62.99 in, 78.74 in)- Z travel
1,000 mm, 1,150 mm
(39.37 in, 45.28 in)- Rotational speed
4,000 rpm, 6,000 rpm, 10,000 rpm
(25,133 rad.min-1, 37,699 rad.min-1, 62,832 rad.min-1)- Power
15 kW, 18.5 kW, 22 kW
(20.39 hp, 25.15 hp, 29.91 hp)
Description
The MCV-AII delivers smooth performance with the speed and power you expect from an Okuma double column machining center. This machine is perfect for streamlined machining of medium to large parts from heavy-duty cutting to fast finishing. The direct (gearless) spindle drive means less noise for better work environment and less vibration for longer tool life. Standard spindle cooler delivers consistently high accuracies while the solid double-column construction ensures flawless precision and rigidity.
Table size [mm]
1,200 x 1,800 to 1,500 x 5,000
Distance between columns [mm]
1,650, 2,050
