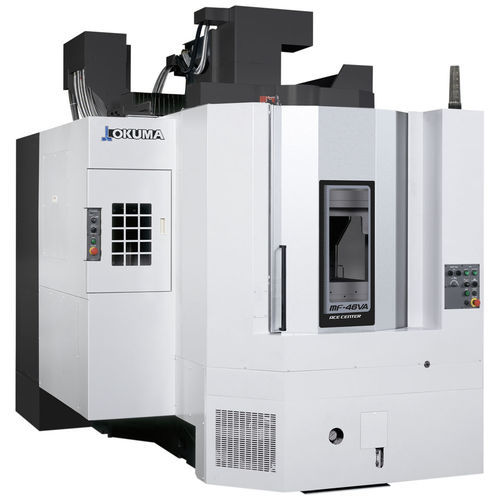

3-axis CNC machining center MF-46VA/B
vertical32 outils20 tools

3-axis CNC machining center
3-axis CNC machining center
3-axis CNC machining center
Add to favorites
Compare this product


Characteristics

Number of axes
3-axis
Spindle orientation
vertical
Number of tool stations
32 outils, 20 tools, 48 tools
Other characteristics
high-speed, high-precision
X travel

760 mm
(30 in)

Y travel

560 mm
(22 in)

Z travel

460 mm
(18 in)

Rotational speed

Max.: 35,000 rpm
(219,911 rad.min-1)

Min.: 6,000 rpm
(37,699 rad.min-1)

Power

7.5 kW, 11 kW, 15 kW, 18.5 kW, 22 kW
(10.2 hp, 14.96 hp, 20.39 hp, 25.15 hp, 29.91 hp)

Description

The basis for all Okuma vertical machining centers, the MF-46VA/B sets the bar for efficiency, utility, and high speed. Among the fastest in the industry. An impressive thermal stability and zero table overhang allow for tight tolerances and extreme accuracy. The ergonomic front-access design of the Okuma MF-46VA/B requires minimal floor space while yielding maximum results. In addition, the MF-46VA/B is environmentally friendly, requiring no hydraulic fluid. Construction optimisation based on FEM analysis and a rapid spindle traverse with Hi-G acceleration combine to create a solid, nimble machine that delivers on its promise of speed and accuracy, time and time again.
