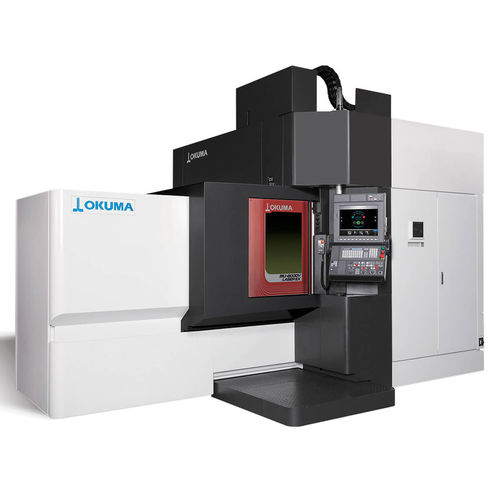

3-axis machining center / vertical / laser
MU-8000V EX

{{requestButtons}}

Characteristics

  • Number of axes:

    3-axis

  • Spindle orientation:

    vertical

  • Other characteristics:

    laser

  • X travel:

    925 mm

  • Y travel:

    870 mm

  • Z travel:

    600 mm

  • Rotational speed:

    Min.: 50 rpm (314 rad.min-1)

    Max.: 8,000 rpm (50,265 rad.min-1)

  • Power:

    Min.: 7.5 kW (10.2 hp)

    Max.: 11 kW (14.96 hp)

Description

The MU-8000V LASER EX revolutionizes production by combining the latest laser additive technology with subtractive machining capabilities. This super multitasking CNC machine implements laser metal deposition (LMD) technology with the ability to cut unique parts of many different sizes and shapes.

LMD supplies powder from nozzles and performs laser melting and bonding to the parent material. This allows for various types of materials to be combined and layered, in addition to the possibility of three-dimensional fabrication and cladding.

Parts can also be repaired and inspected throughout production, and an infinitely variable control of laser spot diameters (Ø0.4 to 8.5 mm) increase efficiency and resolution.

By implementing laser metal deposition (LMD) instead of laser metal fusion (LMF), Okuma’s MU-8000V LASER EX offers these advantages:

Mid-process part inspection and material exchange
Coolant use in work envelope
Faster process than powder bed fusion
Three-dimensional fabricating
