3-axis CNC machining center MCR-A5C series verticaldouble-column120 tools
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Structure
- double-column
- Number of tool stations
- 120 tools, 80 tools, 50 tools
- Applications
- for molds
- Other characteristics
- high-speed, compact, high-power, high-rigidity, automated loading/unloading
- X travel
Min.: 3,050 mm
(120.08 in)Max.: 12,050 mm
(474.41 in)- Y travel
2,600 mm, 3,100 mm, 3,600 mm, 4,100 mm
(102.36 in, 122.05 in, 141.73 in, 161.42 in)- Z travel
800 mm
(31.5 in)- Rotational speed
4,000 rpm, 6,000 rpm, 10,000 rpm
(25,133 rad.min-1, 37,699 rad.min-1, 62,832 rad.min-1)- Power
22 kW, 26 kW, 30 kW
(29.91 hp, 35.35 hp, 40.79 hp)- Work feed X-axis
30,000 mm/min
(19.69 in/s)- Work feed Y-axis
30,000 mm/min
(19.69 in/s)- Work feed Z-axis
20,000 mm/min
(13.12 in/s)
Description

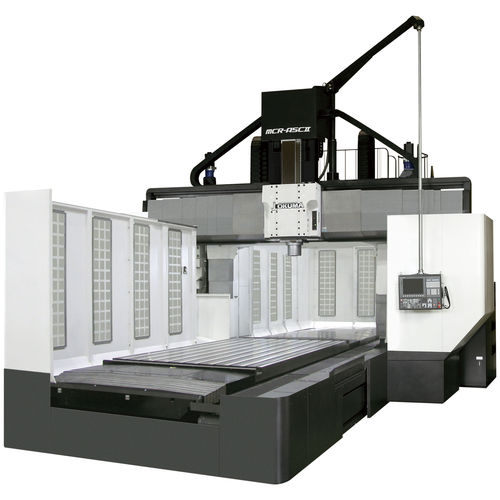

Our MCR-A5CII is a high-speed double column machining center with compact auto-loading/unloading attachments for true 5-sided machining in a compact footprint. The solid double column construction ensures greater rigidity and closer tolerances, making this machine well-suited for the efficient machining of general parts and rapid die/mold jobs.
Space-saving auto attachment changer (AAC) - 5-face machining with various attachment heads
OSP suite - features you want with preloaded apps
Rigid and accurate guide system - for high quality machining
VIDEO
Catalogs
No catalogs are available for this product.
See all of OKUMA‘s catalogsExhibitions
Meet this supplier at the following exhibition(s):
IMTS 2026
14-19 Sep 2026 Chicago (USA - Illinois) Hall South Level 3 - Stand 338500
