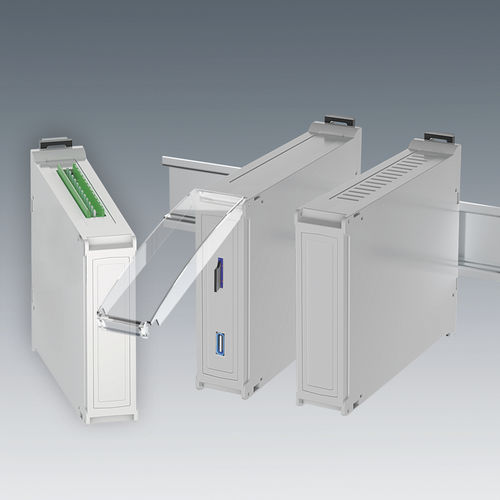

DIN rail enclosure RAILTEC BP M22
modularPCelectronic equipment

DIN rail enclosure - RAILTEC BP M22 - OKW Odenwälder Kunststoffwerke Gehäusesysteme GmbH - modular / PC / electronic equipment
DIN rail enclosure - RAILTEC BP M22 - OKW Odenwälder Kunststoffwerke Gehäusesysteme GmbH - modular / PC / electronic equipment
DIN rail enclosure - RAILTEC BP M22 - OKW Odenwälder Kunststoffwerke Gehäusesysteme GmbH - modular / PC / electronic equipment - image - 2
DIN rail enclosure - RAILTEC BP M22 - OKW Odenwälder Kunststoffwerke Gehäusesysteme GmbH - modular / PC / electronic equipment - image - 3
DIN rail enclosure - RAILTEC BP M22 - OKW Odenwälder Kunststoffwerke Gehäusesysteme GmbH - modular / PC / electronic equipment - image - 4
DIN rail enclosure - RAILTEC BP M22 - OKW Odenwälder Kunststoffwerke Gehäusesysteme GmbH - modular / PC / electronic equipment - image - 5
Add to favorites
Compare this product
Go to the OKW Odenwälder Kunststoffwerke Gehäusesysteme GmbH website for more information

Characteristics

Construction
for DIN rail
Configuration
modular
Material
PC
Application
electronic equipment, for instrumentation, for controllers, for measuring devices
Other characteristics
ventilated
Width

95 mm
(3.7 in)

Height

23 mm
(0.9 in)

Depth

113 mm
(4.45 in)

Description

Range of DIN rail enclosures expanded with a new panel version. The RAILTEC BP M22 is a versatile electronics enclosure designed for simple and quick mounting on EN 60715 TH35 DIN rails. It is ideally suited for measuring/control devices and is dimensioned according to industry standard sizes. The RAILTEC BP M22 is available in three different side panel configurations: closed, with ventilation slots on one side, and with ventilation slots on both sides for increased heat dissipation. The panel version provides simple and flexible installation of the electronics as well as efficient, screwless case assembly.
