Electric vibrator EWO
verticalfor concretehigh-frequency

electric vibrator
electric vibrator
electric vibrator
Add to favorites
Compare this product


Product applications
for concrete
Other characteristics
high-frequency, portable, single-phase, with integrated converter

1,700 N, 3,760 N, 5,640 N, 7,330 N


0.5 kW, 0.9 kW, 1.1 kW, 1.3 kW (0.68 hp)

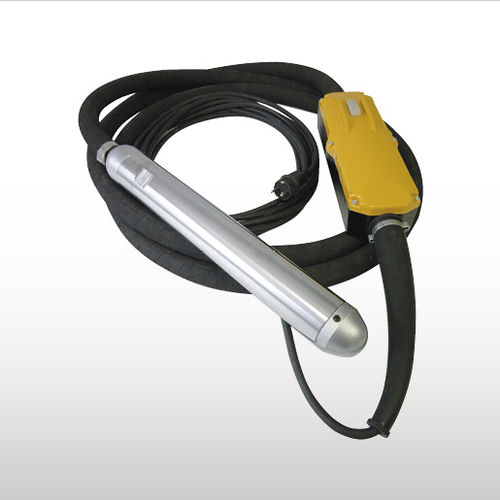

EWO Electric High Frequency Internal Vibrators, which are directly connected with the mains supply at 230 V, 50/60 Hz, consist of a tractor unit called vibrator head, 10 metres of electric cable and of 5 metres internally reinforced operating hose. The high centrifugal force is generated by a high frequency electric motor integrated in the vibrator head. Vibrators are equipped with a key pad (IP 66 protection) in polyamide, complete with switch protected by a reinforced gasket resistant to continuous use and wear. A small electronic converter, complete with switch, is integrated into the power cable. The inverter is housed in a sturdy, dust-tight, waterproof (IP 66) aluminium casing. It is protected against overload, overvoltage, excess temperature and short circuits. A led signals with different colours accurate functioning or the presence of a fault. Each colour corresponds to a specific fault. All electronic components are covered with a resin so as to protect them from vibration, humidity and any shock.
