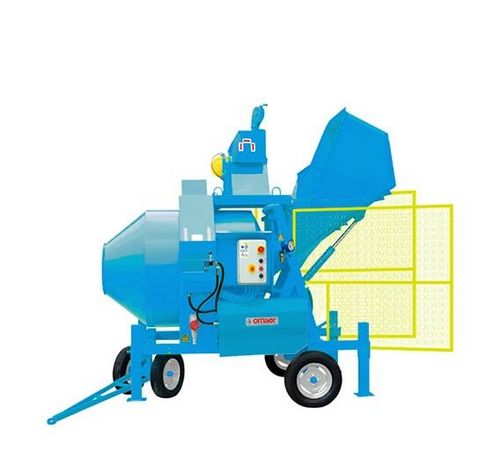

Diesel concrete mixer C1500i 4R

electricmobilereversing drum

Mod. C1500i 4R Reversing drum mixer Total capacity of tank lt. 1500 Capacity of mixing (about) lt. 1000 Water tank capacity lt. 80 Concrete hour production m³ 29 Revolutions per minute tank rpm 17 Power electric motor 380V / 50Hz HP 15 - kW 11,25 Power diesel motor HP 30 - kW 22,5 Lenght (about) mm. 3600 Width (about) mm. 2100 Height (about) (bucket raised) mm. 3400 Weight (electric motor without shovel) Kg. 1380 Weight (electric motor with shovel) Kg. 1480 Weight (diesel motor without shovel) Kg. 1450 Scraping Shovel Power electric motor 380V / 50Hz HP 2,5 - Kw 1,85 Traction speed m/sec. 0,72 Traction capacity Kg. 257 Lenght Steel cable m 12 1) Lever bucket 2) Piston bucket 3) Water meter Data and sizes are not binding and the producer reserves itself to modify the machines without giving notice.
