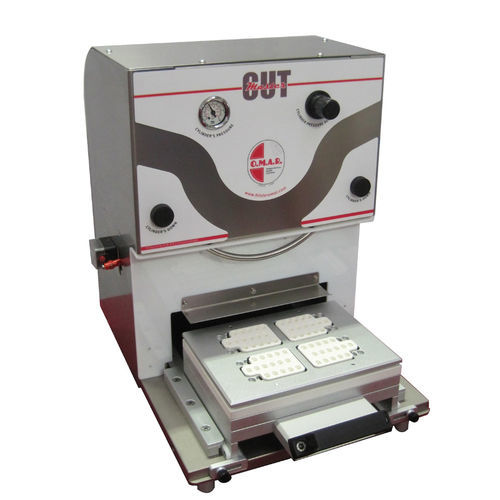

PVC cutting machine Master cut

for aluminumsemi-automaticcold

Pneumatic shearing station Master Cut model, for die-cut of blisters once they are sealed or for changes to be made to the external contour of the blisters. The Master Cut carries out multiple functions： by cold processing at a constant temperature, it can be used as a single and independent station for cutting blisters up to a thickness of 0.8 mm. This is the ideal machine for changing the structures and external shape of the blister, working on multiple blisters per stroke. MAIN CHARACTERISTICS 1)5emi-automatic machine 2)Cutting station 3)Useful cutting area 212x132mm A)Cutting of PVC-ALU blisters 5)Cutting of ALU-ALU blisters 6)Compact dimensions 7)5emi-automatic functions 8)5afety system for two-handed push-buttons pneumatically activated 9)Pressure monitoring by means of front pressure gauge 10)lnlet air pressure controling by means of flow regulator 11)Condensation separator positioned at the compressed air inlet 12)Front protective casing PRODUCTION Daily production (7 hours) of PVC-ALU blisters approx. 10,000 cut and customized blisters (4 blisters per stroke)
